Joins

Join as-of

New in 3.15.0

Use StreamingDataFrame.join_asof() to join two topics into a new stream where each left record is merged with the right record with the same key whose timestamp is less than or equal to the left timestamp.

This join is built with the timeseries enrichment use cases in mind, where the left side represents some measurements and the right side represents events.

Some examples:

Matching of the sensor measurements with the events in the system.
Joining the purchases with the effective prices of the goods.

During as-of join, the records on the right side get stored into a lookup table in the state, and the records from the left side query this state for matches.

Requirements

To perform a join, the underlying topics must follow these requirements:

Both topics must have the same number of partitions.
Join is a stateful operation, and it requires partitions of left and right topics to be assigned to the same application during processing.
Keys in both topics must be distributed across partitions using the same algorithm. For example, messages with the key A must go to the same partition number for both left and right topics. This is Kafka's default behaviour.

Example

Join records from the topic "measurements" with the latest effective records from the topic "metadata" using the "inner" join strategy and a grace period of 14 days:

from datetime import timedelta

from quixstreams import Application

app = Application(...)

sdf_measurements = app.dataframe(app.topic("measurements"))
sdf_metadata = app.dataframe(app.topic("metadata"))

# Join records from the topic "measurements"
# with the latest effective records from the topic "metadata".
# using the "inner" join strategy and keeping the "metadata" records stored for 14 days in event time.
sdf_joined = sdf_measurements.join_asof(
    right=sdf_metadata,
    how="inner",                 # Emit updates only if the match is found in the store.
    on_merge="keep-left",        # Prefer the columns from the left dataframe if they overlap with the right.
    grace_ms=timedelta(days=14), # Keep the state for 14 days (measured in event time similar to windows).
)

if __name__ == '__main__':
    app.run()

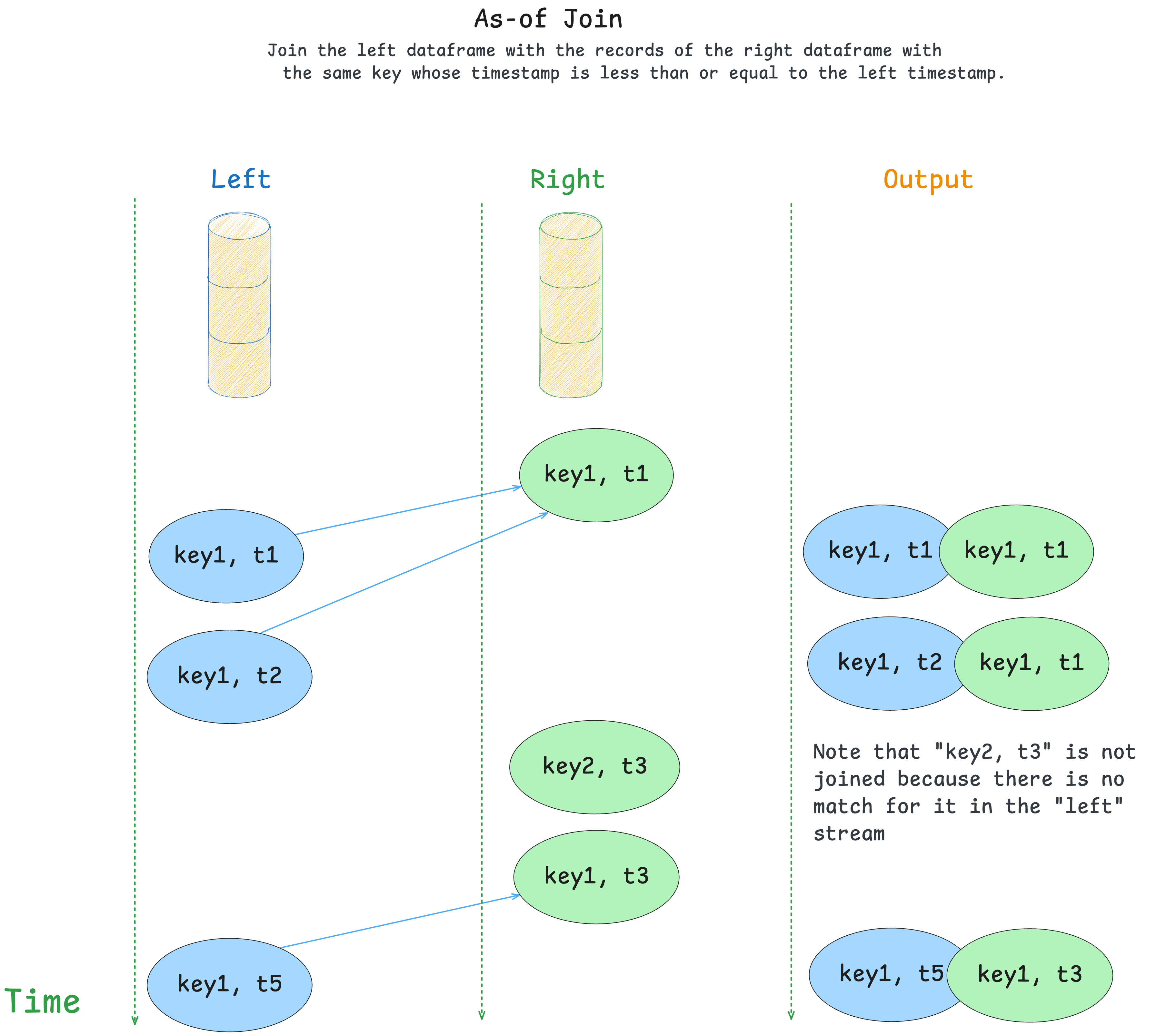

How it works

Here is a description of the as-of join algorithm:

Records from the right side get written to the state store without emitting any updates downstream.
Records on the left side query the right store for the values with the same key and the timestamp lower or equal to the record's timestamp.
If the match is found, the two records are merged together into a new one according to the on_merge logic.
The size of the right store is controlled by the "grace_ms": a newly added "right" record expires other values with the same key with timestamps below " - ".

Joining strategies

As-of join supports the following joining strategies:

inner - emit the output for the left record only when the match is found (default).
left - emit the output for the left record even without a match.

Merging records together

When the match is found, the two records are merged according to the on_merge parameter.

Out-of-the-box implementations assume that records are dictionaries.
For merging other data types (as well as customizing the behavior) use the callback option.

Possible values:

raise - merge two records together into a new dictionary and raise an exception if the same keys are found in both dictionaries.
This is a default behavior.
keep-left - merge two records together into a new dictionary and prefer keys from the left record in case of overlap.
keep-right - merge two records together into a new dictionary and prefer keys from the right record in case of overlap.
custom callback - pass a callback (<left>, <right>) -> <merged> to merge the records manually.
Use it when non-dictionary types are expected, or you want to customize the returned object:

from typing import Optional

from quixstreams import Application

app = Application(...)

sdf_measurements = app.dataframe(app.topic("measurements"))
sdf_metadata = app.dataframe(app.topic("metadata"))


def on_merge(left: int, right: Optional[str]) -> dict:
    """
    Merge non-dictionary items into a dict
    """
    return {'measurement': left, 'metadata': right}


sdf_joined = sdf_measurements.join_asof(right=sdf_metadata, on_merge=on_merge)

if __name__ == '__main__':
    app.run()

State expiration

StreamingDataFrame.join_asof stores the right records to the state.
The grace_ms parameter regulates the state's lifetime (default - 7 days) to prevent it from growing in size forever.

It shares some similarities with grace_ms in Windows:

The timestamps are obtained from the records.
The join key keeps track of the maximum observed timestamp for each individual key.
The older values get expired only when the larger timestamp gets stored to the state.

Adjust grace_ms based on the expected time gap between the left and the right side of the join.

Limitations

Joining dataframes belonging to the same topics (aka "self-join") is not supported.
As-of join preserves headers only for the left dataframe.
If you need headers of the right side records, consider adding them to the value.

Message ordering between partitions

Streaming joins use StreamingDataFrame.concat() under the hood, which means that the application's internal consumer goes into a special "buffered" mode when the join is used.

In this mode, it buffers messages per partition in order to process them in the timestamp order between different topics.
Timestamp alignment is effective only for the partitions with the same numbers: partition zero is aligned with other zero partitions, but not with partition one.

Note that message ordering works only when the messages are consumed from the topics.
If you change timestamps of the record during processing, they will be processed in the original order.

Lookup join

New in 3.16.0

Warning

This is an experimental feature; the API may change in future releases.

StreamingDataFrame.join_lookup() is a special type of join that allows you to enrich records in a streaming dataframe with the data from external systems.

You can use it to enriching streaming data with configuration or reference data from an external source, like a database.

Example

To perform a lookup join, you need:

A subclass of quixstreams.dataframe.joins.lookups.base.BaseLookup to query the external source and cache the results when necessary.
A subclass of quixstreams.dataframe.joins.lookups.base.BaseField to define how the data is extracted from the result.
To pass the lookup and the fields to the StreamingDataFrame.join_lookup.

See SQLiteLookup and SQLiteLookupField for the reference implementation.

Here is an example of lookup join with a SQLite database:

from quixstreams import Application
from quixstreams.dataframe.joins.lookups import SQLiteLookup, SQLiteLookupField

app = Application(...)

# An implementation of BaseLookup for SQLite
lookup = SQLiteLookup(path="db.db")

sdf = app.dataframe(app.topic("input"))

sdf = sdf.join_lookup(
    lookup,
    on="column",  # A column in StreamingDataFrame to join on
    fields={
        # A mapping with SQLite fields to join with
        "lookup": SQLiteLookupField(table="table", columns=["column"], on="id"),
    },
)

if __name__ == '__main__':
    app.run()

How it works

For each record in the dataframe, a user-defined lookup strategy (a subclass of BaseLookup) is called with a mapping of field names to field definitions (subclasses of BaseField).
The lookup strategy fetches or computes enrichment data based on the provided key and fields, and updates the record in-place.
The enrichment can come from external sources such as configuration topics, databases, or in-memory data.
