Deployment sizes and resources

Every replica of a deployment runs with a CPU limit and a memory limit, and a request for each that reserves capacity on the cluster. Organization admins can turn the free-form CPU and memory inputs into a curated catalog of deployment sizes, and set organization-wide default reservations that apply when nothing more specific does.

This page explains the resource model once. Other deployment pages, such as the deployments overview, the quix.yaml reference and Quix variables, link here rather than repeating it.

Limits and requests

A deployment carries two numbers per resource. They mean different things at runtime:

Aspect	Limit	Request
What it is	The most a single replica may use.	The amount reserved for the replica when it is scheduled.
CPU at runtime	The replica cannot use more CPU than the limit.	When the node's CPU is contended, replicas with larger requests get more CPU time.
Memory at runtime	A replica that uses more than the limit can be stopped by the kernel. A service replica is then restarted. A job is not restarted.	Used mainly for scheduling. Under node memory pressure, replicas using more than their request are the first candidates for eviction.
Scheduling	Not used for placement.	The replica is only placed on a node with this much unallocated CPU and memory.
Units	Millicores and MB. `1000` millicores is one core.	Millicores and MB. Always less than or equal to the limit.

The request is what the scheduler counts. A deployment with a 1000 millicore limit and a 100 millicore request occupies 100 millicores of the node's schedulable CPU and can burst to a full core when the node has spare capacity. When the node is busy, it gets CPU time in proportion to its small request. Raising the request makes the replica's performance more predictable and lets fewer replicas fit on the cluster.

These are standard Kubernetes behaviors, described in Resource Management for Pods and Containers and Node-pressure Eviction.

In the portal a request is expressed as a reservation: a percentage of the limit. A 40% CPU reservation on a 1000 millicore limit reserves 400 millicores. In quix.yaml the request is written as an absolute number of millicores or MB.

The platform enforces a floor of 10 millicores and 50 MB on every request, and never lets a request exceed its limit. Organizations on a trial subscription always run with a 10% reservation and cannot change it.

The limits, but not the requests, are exposed to your code as the Quix__Deployment__Limits__Cpu and Quix__Deployment__Limits__Memory Quix variables.

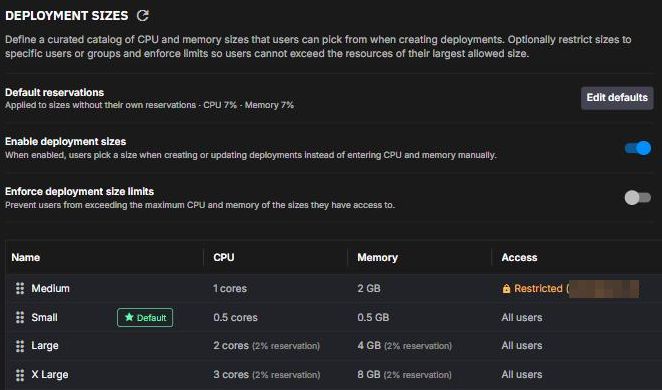

Deployment sizes

A deployment size is a named CPU and memory pair, such as S = 1 core / 2000 MB, that users pick from a dropdown instead of typing numbers. Sizes are defined per organization in Organization Settings > Deployment Sizes and need the organization update permission, so in practice an Admin.

To set up deployment sizes:

Open Organization Settings > Deployment Sizes.
Turn on Enable deployment sizes. The catalog appears below the settings.
Adjust the catalog. + Add new deployment size adds a size, and each row's menu has Make default (Remove default on the current default), Edit size and Delete size. Drag a row to change its position.
Optionally, set the organization's default reservations with Set defaults, or Edit defaults once they're set. See Organization default reservations.
Optionally, turn on Enforce deployment size limits, described in the table below.

The page has three settings above the catalog:

Setting	Effect
Default reservations	The organization-wide request percentages. See Organization default reservations.
Enable deployment sizes	When on, the deployment dialog shows a Size dropdown, as described in Choosing resources in the deployment dialog. When off, it offers only Custom, users enter CPU and memory directly, and sizes are ignored, even if some are defined.
Enforce deployment size limits	Only shown when sizes are enabled. When on, the deployment dialog no longer lets users pick Custom. Creating or updating a deployment by any route, including `quix.yaml` syncs and the API, is rejected if its CPU exceeds the largest CPU, or its memory the largest memory, among the sizes the user has access to. Through `quix.yaml` and the API, values within those limits don't have to match a size. Turning it on does not change existing deployments. Creating or changing a dev session is checked the same way, for each of CPU and memory that the request sets. Rejections read `CPU millicores must be no greater than <max> based on your allowed deployment sizes` or `Memory must be no greater than <max> MB based on your allowed deployment sizes`. A user with access to no size is rejected with `No deployment sizes are available for your user. Contact your organisation admin.` The check is skipped while the catalog is empty.

The starter catalog

The first time the size list is requested for an organization that has sizes enabled and no sizes defined, the platform seeds four:

Size	CPU	Memory	Default
XS	500 millicores	1000 MB
S	1000 millicores	2000 MB	Yes
M	2000 millicores	3000 MB
L	3000 millicores	4000 MB

Edit, reorder, delete or add to these freely. The seed runs once per organization, so deleting them all leaves an empty catalog.

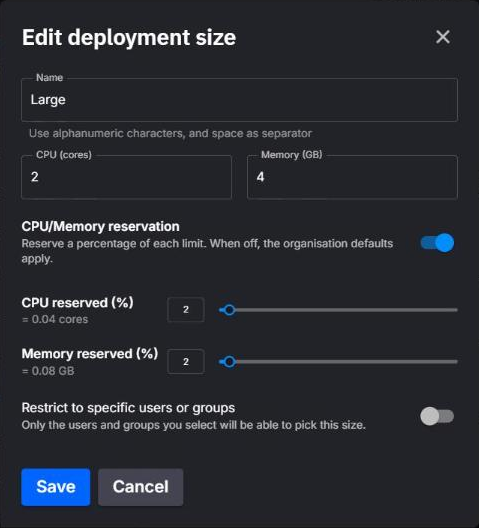

What a size defines

Field	Notes
Name	Letters, digits and spaces, up to 25 characters in the dialog, unique within the organization.
CPU (cores) and Memory (GB)	The size's CPU and memory limits. The dialog takes cores and GB, with 1 GB = 1024 MB, and stores millicores and MB. The seeded `S` size's 2000 MB therefore shows as 1.95 GB in the catalog.
CPU/Memory reservation	Optional. When on, the size stores request percentages, `0` to `100` of each limit. The dialog shows the cores and GB each percentage corresponds to.
Restrict to specific users or groups	Optional. When on with at least one user or group selected, only the selected users, members of the selected groups, and anyone with the organization update permission, in practice Admins, have access to the size. Access decides which sizes the Portal API returns to a user and the limit enforced for them. See Restrict a size to users and groups.

Two more properties are set from the catalog rather than the edit dialog:

Default. At most one size can be the default. When a new deployment opens with the dialog's starting values of 0.2 cores and 0.5 GB, the dialog preselects a listed size of exactly 200 millicores and 512 MB if there is one. Otherwise it preselects the default if the dropdown lists it, and otherwise the dropdown's smallest size by CPU, then memory. An organization does not need a default: the last one can be unmarked or deleted.
Order. Drag rows to set the order the dropdown lists them in. Sizes with the same position sort by CPU, then memory.

Deleting a size does not change the deployments that used it: they keep their CPU and memory.

Admins can also manage sizes through the Portal API, with the /organisations/current/deployment-sizes endpoints listed in the Swagger reference.

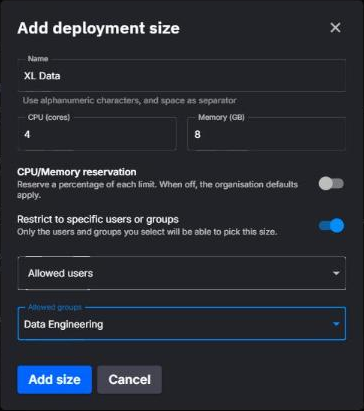

Restrict a size to users and groups

By default every size is available to every user. To make a size available only to specific users, to the members of specific user groups, or both:

In Organization Settings > Deployment Sizes, choose Edit size from the size's menu, or add a size with + Add new deployment size.
Turn on Restrict to specific users or groups.
Select users under Allowed users, groups under Allowed groups, or both, and click Save, or Add size for a new size.

The catalog then shows the size as Restricted, with a summary of who can use it. Unrestricted sizes show All users.

Every member of an allowed group has access to the size, whether or not their Inherit from group toggle for roles is on. The deployment dialog's Size dropdown lists a restricted size only for users selected individually, so members who have access only through a group can't pick it there. See Choosing resources in the deployment dialog.

An empty allow list is not a restriction

In the dialog, a restriction only takes effect when at least one user or group is selected: saving with the toggle on and nobody selected leaves the size available to all users. Through the Portal API, sending empty lists of allowed users and groups restricts the size to Admins, and the catalog shows a dash for it.

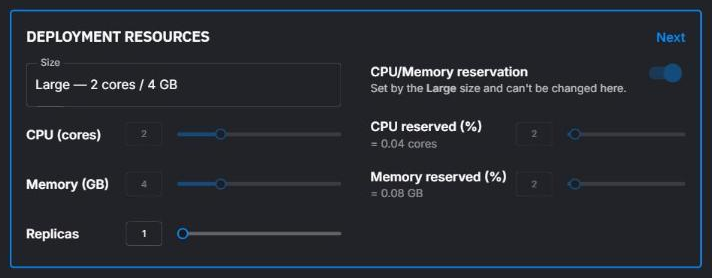

Choosing resources in the deployment dialog

The Deployment resources panel of the deployment dialog adapts to the organization's settings:

Organization setting	What the user sees
Sizes disabled	CPU and memory sliders. The Size dropdown shows only Custom and an info icon pointing at Organization Settings. No reservation controls.
Sizes enabled, limits not enforced	The Size dropdown lists the unrestricted sizes and each restricted size that selects the user individually, plus Custom. Picking a size locks the sliders to its values. Picking Custom unlocks them, bounded by your subscription's CPU and memory quota.
Sizes enabled, limits enforced	The Size dropdown lists the same sizes, without Custom for a new deployment. When you edit an existing deployment, a disabled Custom entry can appear, and a size must be picked before saving.

The CPU/Memory reservation toggle sits next to the dropdown whenever sizes are enabled:

Picking a named size locks the toggle and shows the note Set by the <size> size and can't be changed here. If the size has its own reservation, the toggle is on and the CPU reserved (%) and Memory reserved (%) sliders show its percentages, with the cores and GB they reserve. Otherwise the toggle is off.
With Custom selected and limits not enforced, the toggle is the user's. Switching it on seeds the sliders with the organization defaults, and the values saved become an explicit request on the deployment. Switching it off clears any explicit request so the deployment inherits again.
With limits enforced, the toggle is locked.

With Custom selected, the collapsed panel header summarizes the result. For a service with sizes enabled and Custom set to 1 core, 2 GB and a 40% reservation, it reads Size: Custom (1 cores / 2 GB) | Reservation: 0.4 cores (40%) / 0.8 GB (40%) | Replicas: 1. The reservation part appears only when the reservation toggle is on and reserves more than zero, and the replica count for every deployment type except jobs.

How a request is resolved

CPU and memory resolve independently. For each, the first layer that supplies a value wins:

Trial subscription. Fixed at 10% of the limit. Nothing below applies.
Explicit request on the deployment. An absolute value written in quix.yaml under resources.requests, or saved from the dialog with the reservation toggle on and Custom selected.
Organization default reservations, whether set by an admin or inherited from the subscription plan.
Platform fallback of 10%.

The result is rounded up to a whole millicore or MB and clamped to the 10 millicore / 50 MB floor and the limit.

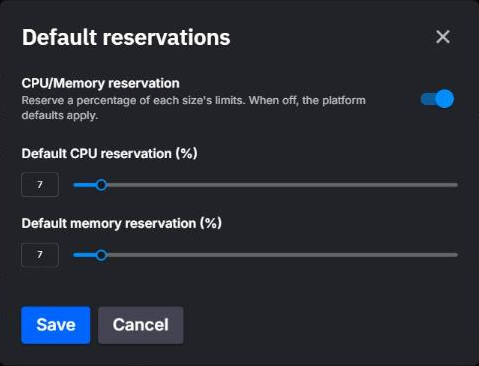

Organization default reservations

The Default reservations row at the top of Organization Settings > Deployment Sizes holds the organization-wide request percentages. They apply to every deployment that has no explicit request of its own, including deployments created while sizes are disabled.

The row shows where the current values come from:

Row shows	Meaning
Percentages such as `CPU 40% · Memory 40%`, not marked as inherited	An admin set these values on the organization.
`Inherited from your plan` followed by the percentages	The organization has no values of its own and inherits its subscription plan's default reservation percentage.
`No org default set`	Neither the organization nor its plan supplies a value. The 10% platform fallback applies.

Open the dialog with Set defaults or Edit defaults. The CPU/Memory reservation toggle switches between the two states:

On. Set each percentage between 1 and 100. Saving stores them on the organization.
Off. When the organization was already inheriting when the dialog opened, the sliders show the inherited plan values read-only, with the note These values are inherited from your plan. Turn on CPU/Memory reservation to set your own. Saving clears the organization's values so it inherits again.

Through the API, GET /organisations/current returns the effective requestDefaults together with userDefinedRequestDefaults, which is true only when an admin set them. PATCH /organisations/{organisationId} takes either requestDefaults with both axes between 1 and 100, or unsetRequestDefaults: true to go back to inheriting. Zero is rejected on either axis.

Resources in `quix.yaml`

The resources block of a deployment in quix.yaml carries the limits, the optional requests and the replica count, all as absolute numbers:

deployments:
  - name: order-processor
    application: order-processor
    deploymentType: Service
    version: latest
    resources:
      limits:
        cpu: 1000
        memory: 2000
      requests:
        cpu: 200
        memory: 500
      replicas: 1

limits.cpu and requests.cpu are millicores. limits.memory and requests.memory are MB.
requests is optional, and each axis is optional inside it. An omitted axis inherits from the organization defaults described above. A present axis is an explicit request and must not exceed its limit.
quix.yaml has no size field. A deployment records only its CPU and memory numbers, never the name of the size it was created from.
On sync, the file is the source of truth for requests. If a deployment had an explicit request set from the portal and the file omits that axis, the sync clears it.
With Enforce deployment size limits on, a sync whose limits exceed the largest size the syncing user has access to fails validation.

The YAML 2.0 reference documents the rest of the deployment fields.

Where each value is set

Value	Organization Settings	Deployment dialog	`quix.yaml`
CPU and memory limits	Per size, in the catalog	Size dropdown, or the sliders with Custom	`resources.limits`
Request percentages	The organization defaults	Reservation toggle with Custom, saved as absolute values	`resources.requests`, absolute
Which sizes exist and who has access to them	Catalog, restriction per size	Not editable	Not expressed
Enable sizes, enforce limits	Two toggles above the catalog	Not editable	Not expressed
Replicas	Not expressed	Replicas field, not shown for jobs	`resources.replicas`

Dev sessions have their own resource limits, documented with VS Code dev sessions.
