Tumbling Window

Core Characteristics

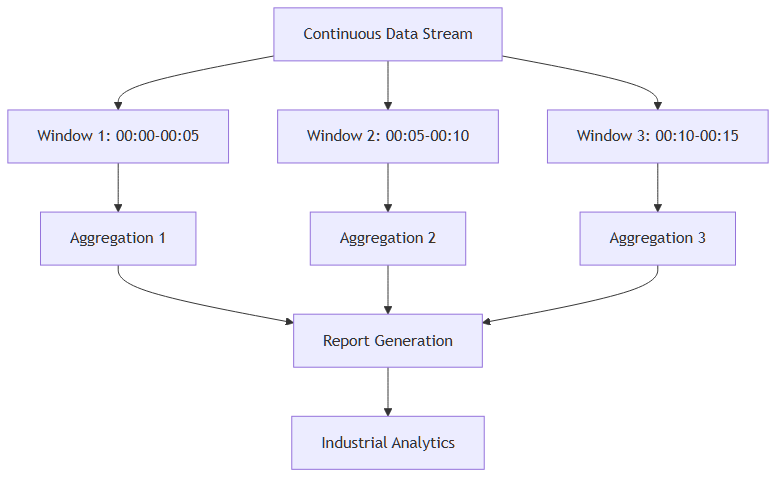

Fixed-Size Intervals

Tumbling windows divide time into equal segments, such as 5-minute, hourly, or shift-based intervals, ensuring consistent analysis periods across different operational conditions.

Non-Overlapping Boundaries

Each data point belongs to exactly one window, eliminating double-counting and ensuring clear temporal boundaries for analysis and reporting.

Sequential Processing

Windows process in strict chronological order, with each window closing and the next beginning immediately, creating a continuous but segmented view of industrial processes.

Complete Data Segregation

Once a window closes, its data is processed independently, making this approach particularly suitable for batch processing and periodic reporting requirements.

Industrial Applications

Production Line Monitoring

Manufacturing systems use tumbling windows to generate periodic reports on production rates, quality metrics, and equipment efficiency, enabling shift-based performance comparisons and trend analysis.

Equipment Health Assessment

Vibration monitoring, temperature tracking, and other condition monitoring systems employ tumbling windows to create regular health snapshots of critical equipment, supporting predictive maintenance programs.

Energy Management

Industrial facilities use hourly or daily tumbling windows to analyze energy consumption patterns, identify peak usage periods, and optimize power management strategies.

Quality Control Analytics

Statistical process control systems implement tumbling windows to generate control charts and capability analyses based on inspection data collected during specific time periods.

Environmental Compliance

Emissions monitoring and environmental control systems use tumbling windows to generate regulatory reports that summarize pollutant levels and compliance metrics over required reporting periods.

Implementation Examples

Sensor Data Aggregation

Temperature sensors in a manufacturing process can be aggregated using 15-minute tumbling windows to provide shift supervisors with regular updates on process conditions:

```sql SELECT timestamp_floor('15m', timestamp) AS period, avg(temperature) AS avg_temp, max(temperature) AS max_temp, min(temperature) AS min_temp, count(*) AS sample_count FROM process_sensors WHERE equipment_id = 'reactor_01' SAMPLE BY 15m; ```

Production Metrics

Production line data can be summarized using hourly tumbling windows to track throughput and efficiency:

```sql SELECT timestamp_floor('1h', timestamp) AS hour, sum(units_produced) AS total_units, avg(cycle_time) AS avg_cycle_time, count(*) AS total_cycles FROM production_line SAMPLE BY 1h; ```

Advantages

Computational Efficiency

Tumbling windows enable efficient processing of large data volumes by breaking continuous streams into manageable chunks that can be processed independently.

Memory Optimization

Since windows don't overlap, memory requirements are minimized as only the current window's data needs to be maintained in memory for processing.

Simplified Reporting

Regular, non-overlapping intervals align well with business reporting requirements such as shift reports, daily summaries, and monthly performance metrics.

Regulatory Alignment

Many industrial regulations require reporting on fixed time periods, making tumbling windows naturally suited for compliance reporting.

Limitations and Considerations

Boundary Effects

Events that span window boundaries may be split artificially, potentially obscuring important process relationships or causing analysis artifacts.

Fixed Timing Constraints

The rigid timing structure may not align with natural process cycles or equipment operating patterns, potentially missing important operational insights.

Limited Context

Analysis within a single window lacks visibility into preceding or following conditions, which may be important for understanding process dynamics.

Best Practices

1. Align window sizes with natural process cycles and operational reporting requirements
2. Consider boundary effects when interpreting results and supplement with additional analysis methods when needed
3. Implement data validation to ensure complete data capture within each window
4. Design for scalability to handle varying data volumes across different windows
5. Coordinate with retention policies to ensure telemetry retention aligns with windowing strategies
6. Document window definitions clearly for operational teams and compliance auditors

Integration with Data Processing

Batch Processing

Tumbling windows naturally support batch processing architectures where data is processed periodically rather than continuously, common in industrial environments with scheduled reporting requirements.

Real-Time Analytics

While typically associated with batch processing, tumbling windows can also support near real-time analytics by processing completed windows immediately after they close.

Data Lifecycle Management

Tumbling windows integrate effectively with telemetry rollups and data archiving strategies, enabling hierarchical data management approaches.

Performance Considerations

Tumbling windows provide predictable performance characteristics since processing loads are distributed evenly across time periods. This predictability is valuable for industrial systems where consistent response times are important for operational reliability.

Modern time-series databases optimize tumbling window operations through specialized indexing and storage strategies, enabling efficient processing of industrial-scale data volumes while maintaining the temporal accuracy required for critical process monitoring and control applications.
