Sampling Resolution

Summary

Sampling resolution refers to the temporal frequency at which data points are collected from industrial sensors, equipment, and measurement systems, determining the granularity and detail level of time-series data used for monitoring, analysis, and control in manufacturing and research environments. In Model Based Design (MBD) and industrial data processing applications, sampling resolution directly impacts the ability to capture transient phenomena, detect anomalies, and validate system models against real-world performance data.

Back

Example H2

Understanding Sampling Resolution Fundamentals

Sampling resolution represents the temporal spacing between consecutive data measurements, typically expressed as sampling frequency (samples per second) or sampling interval (time between samples). The choice of sampling resolution involves balancing the need for detailed information capture against practical constraints including data storage capacity, network bandwidth, processing power, and system cost considerations.

The fundamental principle governing sampling resolution stems from the Nyquist-Shannon sampling theorem, which states that to accurately represent a signal, the sampling frequency must be at least twice the highest frequency component of interest in the measured phenomenon. This principle ensures that important signal characteristics are preserved without aliasing artifacts that can distort analytical results.

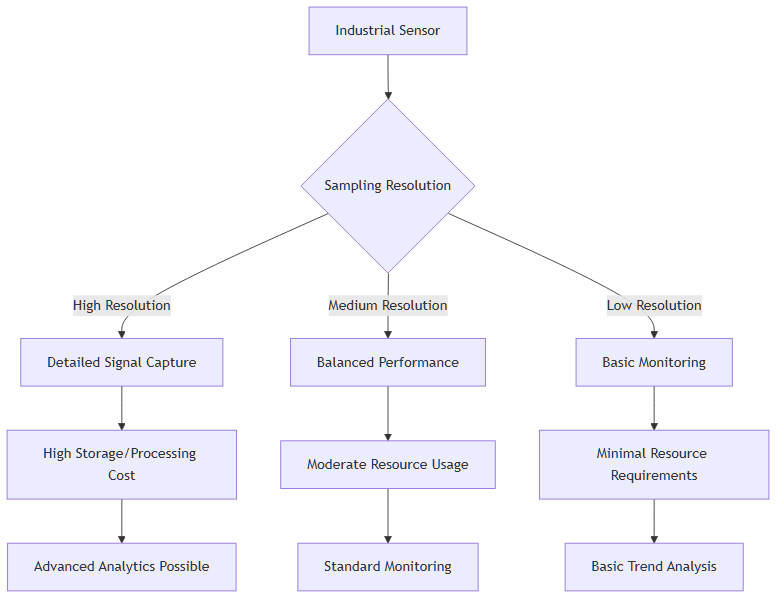

Technical Implications of Resolution Selection

Signal Fidelity and Information Preservation

Higher sampling resolutions capture more detailed temporal variations in industrial processes, enabling detection of rapid transients, high-frequency oscillations, and short-duration events that might be missed with lower resolution sampling. This detailed information is crucial for applications such as vibration analysis, power quality monitoring, and fast-response control systems.

Resource Utilization and System Performance

Increased sampling resolution directly impacts system resource requirements including:

- Data storage volume scaling linearly with resolution increases

- Network bandwidth consumption for real-time data transmission

- Processing computational load for real-time analysis and alerting

- Memory utilization for buffering and intermediate calculations

Measurement Accuracy and Noise Considerations

Higher resolution sampling can improve measurement accuracy by providing more data points for statistical analysis, but may also increase susceptibility to measurement noise and require additional filtering or signal conditioning techniques.

Applications Across Industrial Domains

Manufacturing Process Control

Production equipment monitoring requires sampling resolutions that match process dynamics. Fast processes such as high-speed machining or chemical reactions may require millisecond-level sampling, while slower processes like batch operations or thermal treatments can use second or minute-level intervals.

Equipment Health Monitoring

Predictive maintenance systems utilize various sampling resolutions depending on the monitored parameters. Vibration analysis for rotating equipment typically requires high-frequency sampling (kHz range) to capture bearing defects and imbalance conditions, while temperature monitoring may use much lower frequencies.

Industrial R&D and Testing

Research applications often require high sampling resolutions to capture detailed system behavior during experiments, validate digital twin models, and understand transient phenomena. The ability to adjust sampling resolution based on experimental requirements provides flexibility for different testing scenarios.

Resolution Selection Strategies

Process-Based Determination

Optimal sampling resolution depends on the underlying process characteristics:

Dynamic response time of the monitored system determines minimum resolution requirements
Frequency content of expected signals influences Nyquist frequency considerations
Control loop requirements for closed-loop systems establish real-time processing constraints
Anomaly detection needs determine sensitivity requirements for unusual events

Resource-Constrained Optimization

Practical sampling resolution selection must consider system limitations:

- Available storage capacity constrains long-term data retention capabilities

- Network bandwidth limits real-time data transmission rates

- Processing power affects real-time analysis and response capabilities

- Cost considerations balance detailed monitoring against economic constraints

Implementation Techniques and Best Practices

Adaptive Sampling Strategies

Advanced industrial systems may implement variable sampling resolutions that adjust based on process conditions, prioritizing higher resolution during critical events or transitional periods while reducing resolution during steady-state operations.

Multi-Resolution Data Management

Sophisticated data management strategies maintain multiple resolution levels simultaneously:

- High-resolution data for short-term detailed analysis

- Medium-resolution data for operational monitoring and trending

- Low-resolution data for long-term historical analysis and reporting

Downsampling and Aggregation Techniques

Post-collection data processing can reduce storage requirements through intelligent downsampling algorithms that preserve important signal characteristics while reducing data volume. Common approaches include:

- Statistical aggregation creating min/max/average values over defined intervals

- Event-triggered sampling maintaining high resolution around significant events

- Compression algorithms reducing storage requirements while maintaining analytical capability

Performance Optimization Considerations

Data Ingestion and Processing

High sampling resolutions require robust real-time data ingestion systems capable of handling sustained data rates without loss or latency issues. System design must accommodate peak data rates and provide appropriate buffering for temporary load spikes.

Query Performance and Analytics

Large volumes of high-resolution data can impact query performance for analytical applications. Optimization strategies include:

- Indexed time-series storage for efficient temporal queries

- Pre-aggregated summaries for common analytical operations

- Parallel processing architectures for complex calculations across large datasets

Retention Policy Management

Effective retention policies balance storage costs with analytical requirements, often implementing tiered storage strategies that migrate older data to less expensive storage media while maintaining accessibility for historical analysis.

Integration with Industrial Data Ecosystems

Sampling resolution decisions impact integration with broader industrial systems including data historians for long-term storage, edge computing systems for local processing, and machine learning platforms for advanced analytics. Coordinated resolution strategies across these integrated systems ensure optimal performance while meeting diverse analytical and operational requirements.
