Precision Time Protocol (PTP)

Understanding Precision Time Protocol Fundamentals

PTP addresses the critical need for precise time synchronization in distributed industrial systems where accurate timing is essential for data correlation, event sequencing, and system coordination. Unlike Network Time Protocol (NTP), which provides millisecond accuracy, PTP can achieve nanosecond-level precision, making it ideal for high-performance industrial applications.

The protocol operates on a master-slave hierarchy where one device acts as the master clock (grandmaster) and provides time reference to slave devices throughout the network. This hierarchical approach ensures consistent time distribution while maintaining accuracy across complex industrial networks.

PTP Architecture and Components

Master Clock (Grandmaster)

The primary time reference that provides accurate time to all other devices in the network:

class PTPMasterClock:
    def __init__(self, clock_accuracy, clock_class):
        self.clock_accuracy = clock_accuracy
        self.clock_class = clock_class
        self.clock_id = self.generate_clock_id()
        self.announce_interval = 1  # seconds
        self.sync_interval = 0.125  # seconds (8 per second)

    def send_announce_message(self):
        """Send announce message to advertise master clock"""
        announce_msg = {
            'message_type': 'ANNOUNCE',
            'clock_id': self.clock_id,
            'clock_class': self.clock_class,
            'clock_accuracy': self.clock_accuracy,
            'timestamp': self.get_current_time(),
            'priority1': self.priority1,
            'priority2': self.priority2
        }

        self.broadcast_message(announce_msg)

    def send_sync_message(self):
        """Send sync message with precise timestamp"""
        sync_timestamp = self.get_precise_timestamp()

        sync_msg = {
            'message_type': 'SYNC',
            'clock_id': self.clock_id,
            'sequence_id': self.get_next_sequence_id(),
            'timestamp': sync_timestamp
        }

        self.broadcast_message(sync_msg)

        # Send follow-up message with precise transmission time
        self.send_follow_up_message(sync_msg['sequence_id'], sync_timestamp)

Slave Clocks

Devices that synchronize their local clocks with the master clock:

class PTPSlaveClock:
    def __init__(self, local_clock):
        self.local_clock = local_clock
        self.master_clock_id = None
        self.offset_from_master = 0
        self.path_delay = 0
        self.sync_messages = {}
        self.delay_measurements = []

    def process_announce_message(self, announce_msg):
        """Process announce message and select best master"""
        if self.should_select_master(announce_msg):
            self.master_clock_id = announce_msg['clock_id']
            self.start_synchronization()

    def process_sync_message(self, sync_msg):
        """Process sync message and calculate offset"""
        if sync_msg['clock_id'] != self.master_clock_id:
            return

        # Record sync message reception time
        reception_time = self.local_clock.get_current_time()

        # Store sync message for processing
        self.sync_messages[sync_msg['sequence_id']] = {
            'master_timestamp': sync_msg['timestamp'],
            'reception_time': reception_time
        }

    def process_follow_up_message(self, follow_up_msg):
        """Process follow-up message with precise timestamps"""
        sequence_id = follow_up_msg['sequence_id']

        if sequence_id in self.sync_messages:
            sync_data = self.sync_messages[sequence_id]

            # Calculate offset from master
            precise_master_time = follow_up_msg['precise_timestamp']
            offset = precise_master_time - sync_data['reception_time']

            # Apply path delay compensation
            corrected_offset = offset - self.path_delay

            # Update local clock
            self.adjust_local_clock(corrected_offset)

Boundary Clocks

Devices that act as both master and slave in hierarchical networks:

class PTPBoundaryClock:
    def __init__(self, upstream_port, downstream_ports):
        self.upstream_port = upstream_port  # Slave port
        self.downstream_ports = downstream_ports  # Master ports
        self.slave_clock = PTPSlaveClock(self.upstream_port)
        self.master_clocks = {}

        # Initialize master clocks for each downstream port
        for port in downstream_ports:
            self.master_clocks[port] = PTPMasterClock(port)

    def synchronize_with_upstream(self):
        """Synchronize with upstream master clock"""
        # Receive synchronization from upstream
        self.slave_clock.synchronize_with_master()

        # Update local time reference
        self.update_local_time_reference()

        # Propagate synchronization to downstream ports
        for port, master_clock in self.master_clocks.items():
            master_clock.update_time_reference(self.get_local_time())
            master_clock.send_sync_message()

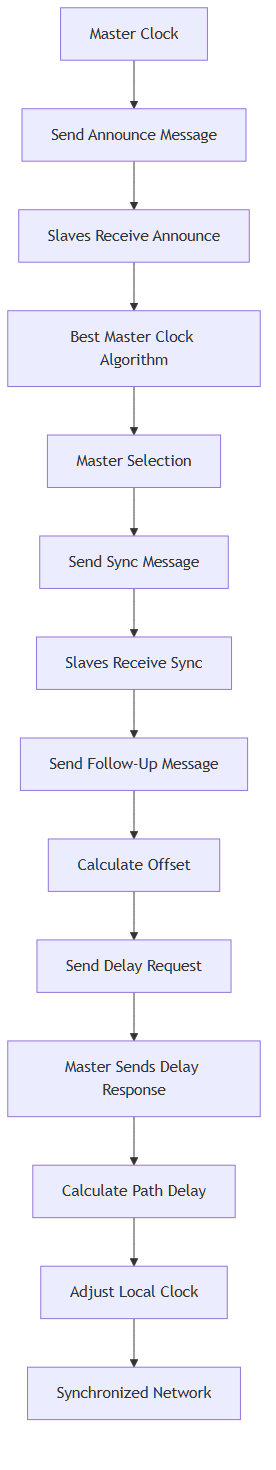

PTP Synchronization Process

Industrial Applications of PTP

Sensor Data Synchronization

Ensuring accurate timestamps across distributed sensor networks:

class SensorDataSynchronizer:
    def __init__(self, ptp_client, sensor_network):
        self.ptp_client = ptp_client
        self.sensor_network = sensor_network
        self.timestamp_validator = TimestampValidator()

    def synchronize_sensor_data(self, sensor_data_batch):
        """Synchronize sensor data timestamps using PTP"""
        synchronized_data = []

        for data_point in sensor_data_batch:
            # Get PTP-synchronized timestamp
            ptp_timestamp = self.ptp_client.get_synchronized_timestamp()

            # Apply timestamp correction
            corrected_timestamp = self.apply_timestamp_correction(
                data_point.timestamp, ptp_timestamp
            )

            # Validate timestamp accuracy
            if self.timestamp_validator.validate_timestamp(corrected_timestamp):
                data_point.timestamp = corrected_timestamp
                synchronized_data.append(data_point)
            else:
                self.handle_timestamp_error(data_point)

        return synchronized_data

Industrial Automation Synchronization

Coordinating distributed control systems using PTP:

class IndustrialAutomationSync:
    def __init__(self, ptp_master, control_systems):
        self.ptp_master = ptp_master
        self.control_systems = control_systems
        self.sync_monitor = SyncMonitor()
        self.coordination_engine = CoordinationEngine()

    def coordinate_control_systems(self, control_sequence):
        """Coordinate control systems using PTP synchronization"""
        # Get synchronized time reference
        sync_time = self.ptp_master.get_synchronized_time()

        # Schedule coordinated actions
        scheduled_actions = []
        for action in control_sequence:
            synchronized_action = self.coordination_engine.synchronize_action(
                action, sync_time
            )
            scheduled_actions.append(synchronized_action)

        # Execute coordinated actions
        for action in scheduled_actions:
            target_system = self.control_systems[action.system_id]
            target_system.execute_at_time(action, action.execution_time)

        # Monitor synchronization accuracy
        self.sync_monitor.monitor_execution_accuracy(scheduled_actions)

Data Acquisition Synchronization

Synchronizing data acquisition across multiple systems:

class DataAcquisitionSync:
    def __init__(self, ptp_client, acquisition_systems):
        self.ptp_client = ptp_client
        self.acquisition_systems = acquisition_systems
        self.sync_scheduler = SyncScheduler()
        self.data_correlator = DataCorrelator()

    def synchronize_data_acquisition(self, acquisition_schedule):
        """Synchronize data acquisition across multiple systems"""
        # Get PTP time reference
        ptp_time_ref = self.ptp_client.get_time_reference()

        # Schedule synchronized acquisitions
        sync_schedule = self.sync_scheduler.create_synchronized_schedule(
            acquisition_schedule, ptp_time_ref
        )

        # Execute synchronized acquisitions
        acquisition_results = {}
        for system_id, schedule in sync_schedule.items():
            system = self.acquisition_systems[system_id]
            results = system.execute_synchronized_acquisition(schedule)
            acquisition_results[system_id] = results

        # Correlate synchronized data
        correlated_data = self.data_correlator.correlate_data(acquisition_results)

        return correlated_data

PTP Implementation Best Practices

Network Configuration

Optimizing network infrastructure for PTP performance:

class PTPNetworkOptimizer:
    def __init__(self, network_config):
        self.network_config = network_config
        self.latency_monitor = LatencyMonitor()
        self.jitter_analyzer = JitterAnalyzer()

    def optimize_network_for_ptp(self):
        """Optimize network configuration for PTP performance"""
        # Analyze network latency
        latency_analysis = self.latency_monitor.analyze_network_latency()

        # Measure network jitter
        jitter_analysis = self.jitter_analyzer.analyze_network_jitter()

        # Optimize switch configurations
        switch_optimizations = self.optimize_switch_configurations(
            latency_analysis, jitter_analysis
        )

        # Configure PTP-aware networking equipment
        self.configure_ptp_aware_equipment()

        return {
            'latency_analysis': latency_analysis,
            'jitter_analysis': jitter_analysis,
            'switch_optimizations': switch_optimizations
        }

Clock Quality Management

Managing clock accuracy and stability:

class ClockQualityManager:
    def __init__(self, clock_sources):
        self.clock_sources = clock_sources
        self.quality_monitor = ClockQualityMonitor()
        self.stability_analyzer = StabilityAnalyzer()

    def manage_clock_quality(self):
        """Manage clock quality across the network"""
        # Monitor clock source quality
        quality_metrics = {}
        for source_id, source in self.clock_sources.items():
            quality_metrics[source_id] = self.quality_monitor.measure_quality(source)

        # Analyze clock stability
        stability_analysis = self.stability_analyzer.analyze_stability(
            quality_metrics
        )

        # Select best clock source
        best_clock = self.select_best_clock_source(quality_metrics, stability_analysis)

        # Update master clock selection
        self.update_master_clock_selection(best_clock)

        return {
            'quality_metrics': quality_metrics,
            'stability_analysis': stability_analysis,
            'selected_master': best_clock
        }

Advanced PTP Features

Transparent Clocks

Implementing transparent clock functionality for improved accuracy:

class PTPTransparentClock:
    def __init__(self, network_ports):
        self.network_ports = network_ports
        self.residence_time_tracker = ResidenceTimeTracker()
        self.correction_calculator = CorrectionCalculator()

    def process_ptp_message(self, ptp_message, input_port, output_port):
        """Process PTP message through transparent clock"""
        # Record message arrival time
        arrival_time = self.get_precise_timestamp()

        # Calculate residence time
        residence_time = self.residence_time_tracker.calculate_residence_time(
            ptp_message, input_port, output_port
        )

        # Update correction field
        updated_correction = self.correction_calculator.update_correction(
            ptp_message.correction_field, residence_time
        )

        # Forward message with updated correction
        ptp_message.correction_field = updated_correction
        self.forward_message(ptp_message, output_port)

Profile-specific Configurations

Implementing industry-specific PTP profiles:

class IndustrialPTPProfile:
    def __init__(self, profile_type):
        self.profile_type = profile_type
        self.profile_config = self.load_profile_config(profile_type)
        self.validator = ProfileValidator()

    def configure_industrial_profile(self):
        """Configure PTP for industrial applications"""
        if self.profile_type == 'POWER_PROFILE':
            return self.configure_power_profile()
        elif self.profile_type == 'TELECOM_PROFILE':
            return self.configure_telecom_profile()
        elif self.profile_type == 'AUTOMOTIVE_PROFILE':
            return self.configure_automotive_profile()
        else:
            return self.configure_default_profile()

    def configure_power_profile(self):
        """Configure PTP for power industry applications"""
        config = {
            'domain_number': 0,
            'announce_interval': 1,
            'sync_interval': 0.125,
            'delay_req_interval': 1,
            'clock_accuracy': 'WITHIN_1_MICROSECOND',
            'time_traceable': True,
            'frequency_traceable': True
        }

        return self.apply_profile_configuration(config)

Monitoring and Diagnostics

PTP Performance Monitoring

Monitoring PTP synchronization performance:

class PTPPerformanceMonitor:
    def __init__(self, monitoring_config):
        self.monitoring_config = monitoring_config
        self.metrics_collector = MetricsCollector()
        self.alert_manager = AlertManager()

    def monitor_ptp_performance(self):
        """Monitor PTP synchronization performance"""
        # Collect synchronization metrics
        sync_metrics = self.metrics_collector.collect_sync_metrics()

        # Monitor offset from master
        offset_metrics = self.monitor_offset_from_master()

        # Monitor path delay variations
        delay_metrics = self.monitor_path_delay_variations()

        # Check performance thresholds
        performance_issues = self.check_performance_thresholds(
            sync_metrics, offset_metrics, delay_metrics
        )

        # Generate alerts for performance issues
        if performance_issues:
            self.alert_manager.generate_performance_alerts(performance_issues)

        return {
            'sync_metrics': sync_metrics,
            'offset_metrics': offset_metrics,
            'delay_metrics': delay_metrics,
            'performance_issues': performance_issues
        }

Diagnostic Tools

Implementing diagnostic capabilities for PTP troubleshooting:

class PTPDiagnostics:
    def __init__(self, diagnostic_tools):
        self.diagnostic_tools = diagnostic_tools
        self.network_analyzer = NetworkAnalyzer()
        self.sync_analyzer = SyncAnalyzer()

    def diagnose_ptp_issues(self, reported_issue):
        """Diagnose PTP synchronization issues"""
        # Analyze network conditions
        network_analysis = self.network_analyzer.analyze_network_conditions()

        # Analyze synchronization performance
        sync_analysis = self.sync_analyzer.analyze_sync_performance()

        # Run diagnostic tests
        diagnostic_results = {}
        for tool_name, tool in self.diagnostic_tools.items():
            if tool.applies_to_issue(reported_issue):
                diagnostic_results[tool_name] = tool.run_diagnostic()

        # Generate diagnostic report
        diagnostic_report = self.generate_diagnostic_report(
            reported_issue, network_analysis, sync_analysis, diagnostic_results
        )

        return diagnostic_report

Integration with Industrial Systems

SCADA Integration

Integrating PTP with SCADA systems for synchronized data collection:

class SCADAPTPIntegration:
    def __init__(self, scada_system, ptp_client):
        self.scada_system = scada_system
        self.ptp_client = ptp_client
        self.timestamp_synchronizer = TimestampSynchronizer()

    def integrate_ptp_with_scada(self):
        """Integrate PTP time synchronization with SCADA systems"""
        # Configure SCADA for PTP time synchronization
        self.scada_system.configure_ptp_sync(self.ptp_client)

        # Synchronize SCADA timestamps
        synchronized_data = self.timestamp_synchronizer.synchronize_scada_data(
            self.scada_system.get_current_data()
        )

        # Update SCADA system with synchronized data
        self.scada_system.update_with_synchronized_data(synchronized_data)

Security Considerations

PTP Security Implementation

Implementing security measures for PTP in industrial networks:

class PTPSecurity:
    def __init__(self, security_config):
        self.security_config = security_config
        self.authentication_manager = AuthenticationManager()
        self.encryption_manager = EncryptionManager()

    def implement_ptp_security(self):
        """Implement security measures for PTP"""
        # Configure authentication
        auth_config = self.authentication_manager.configure_ptp_authentication()

        # Implement message integrity
        integrity_config = self.implement_message_integrity()

        # Configure access control
        access_control_config = self.configure_access_control()

        return {
            'authentication': auth_config,
            'integrity': integrity_config,
            'access_control': access_control_config
        }

Challenges and Solutions

Network Asymmetry

Handling network path asymmetry that can affect synchronization accuracy.

Clock Drift

Managing clock drift and stability issues in distributed systems.

Scalability

Ensuring PTP performance in large, complex industrial networks.

Interoperability

Maintaining compatibility across different PTP implementations and versions.

Related Concepts

Precision Time Protocol integrates closely with industrial automation, sensor data collection, and time series data management. It supports real-time analytics, operational analytics, and industrial data processing by providing accurate time references across distributed systems.

Modern PTP implementations increasingly integrate with network infrastructure, distributed systems, and industrial IoT platforms to enable precise timing in complex industrial environments.
