OPC UA

Summary

OPC Unified Architecture (OPC UA) is an industrial communication standard that provides secure, reliable, and platform-independent data exchange between industrial devices, systems, and applications. OPC UA enables seamless integration of manufacturing equipment, enterprise systems, and cloud platforms through standardized communication protocols and information models. This technology is fundamental to Industrial Internet of Things implementations and Industry 4.0 initiatives, supporting interoperability, security, and scalability in modern industrial automation through comprehensive OPC UA architecture that addresses the complete spectrum of industrial communication requirements.

Back

Example H2

Core Fundamentals

OPC UA represents the evolution of industrial communication standards, addressing the limitations of legacy OPC technologies while providing modern capabilities for security, platform independence, and semantic interoperability. The standard defines both communication protocols and information modeling frameworks that enable consistent data representation across different vendors and systems.

The fundamental principle of OPC UA is to provide a unified approach to industrial communication that abstracts underlying technology differences and enables plug-and-play interoperability between diverse industrial systems. This standardization reduces integration complexity and enables flexible system architectures that can evolve with technological advancement.

OPC UA operates as a service-oriented architecture that separates communication mechanisms from data semantics, enabling rich information models that describe not just data values but also metadata, relationships, and context information essential for industrial applications.

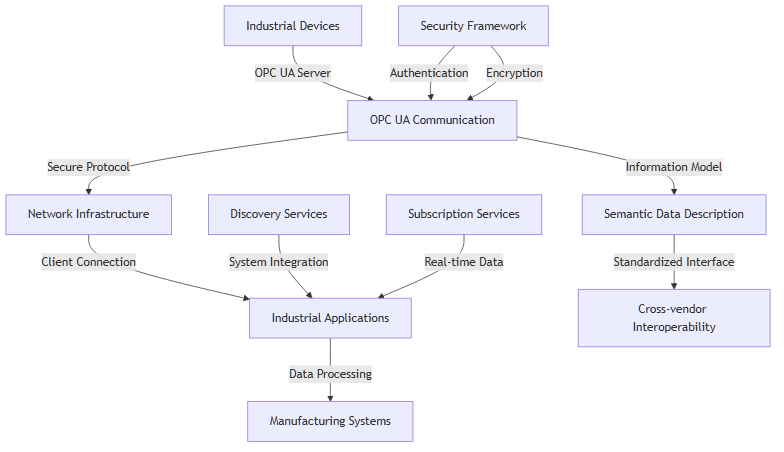

OPC UA Architecture and Components

The OPC UA architecture comprises multiple interconnected layers:

Transport Layer: Secure communication protocols including binary TCP, HTTPS, and WebSocket transports
Security Layer: Comprehensive security framework including authentication, authorization, and encryption
Service Layer: Standardized services for data access, subscription management, and system discovery
Information Model Layer: Object-oriented models that define data structure, relationships, and semantics
Application Layer: Client and server applications that implement specific industrial functionality
Companion Specifications: Industry-specific extensions that define domain-specific information models

Applications and Use Cases

Manufacturing Integration

OPC UA enables comprehensive integration of manufacturing equipment from different vendors through standardized communication interfaces. This capability supports flexible production systems where equipment can be easily reconfigured, replaced, or upgraded without requiring custom integration development.

Enterprise System Connectivity

Industrial facilities leverage OPC UA to connect operational technology (OT) systems with information technology (IT) infrastructure including ERP, MES, and cloud platforms. This integration enables real-time visibility into production operations and supports data-driven decision making across the organization.

Cloud and Edge Integration

Modern OPC UA implementations support cloud connectivity and edge computing architectures that enable hybrid industrial systems. These capabilities support remote monitoring, centralized analytics, and distributed control strategies that optimize both local and global operational performance.

OPC UA Security Framework

Authentication and Authorization: OPC UA provides comprehensive security mechanisms including user authentication, application authentication, and role-based access control that ensure only authorized systems and users can access industrial data and control functions.

Encryption and Integrity: The standard implements strong encryption algorithms and message integrity verification that protect industrial communications from eavesdropping, tampering, and replay attacks. Security policies can be configured to meet specific industry and regulatory requirements.

Certificate Management: OPC UA supports public key infrastructure (PKI) for certificate-based security that enables scalable security management across large industrial deployments. Automated certificate management reduces administrative overhead while maintaining security effectiveness.

Information Modeling Capabilities

Object-Oriented Models: OPC UA information models use object-oriented principles to describe industrial systems including equipment hierarchies, process variables, and operational relationships. These models enable consistent data interpretation across different applications and systems.

Semantic Interoperability: Standardized information models ensure that data has consistent meaning across different vendors and applications. Companion specifications define industry-specific models for domains such as machinery, process automation, and energy management.

Extensibility: The OPC UA modeling framework supports extension and customization while maintaining interoperability. Organizations can define custom models for specific applications while leveraging standard models for common functionality.

Implementation Strategies

Phased Deployment: Successful OPC UA implementation typically follows phased approaches that start with specific systems or applications and gradually expand coverage. This strategy enables learning and refinement while demonstrating value to stakeholders.

Legacy System Integration: OPC UA implementations often require integration with existing systems using protocol gateways, adapters, and translation services. These integration solutions enable gradual migration from legacy protocols while preserving existing investments.

Performance Optimization: Large-scale OPC UA deployments require careful performance optimization including subscription management, data filtering, and network configuration to ensure responsive operation under high-load conditions.

Best Practices and Guidelines

Implement comprehensive security policies that address authentication, encryption, and access control requirements
Use standardized information models where available to ensure interoperability and reduce custom development
Plan for scalability by designing server architectures that can handle growing numbers of clients and data points
Maintain certificate management procedures that ensure security certificates remain valid and properly configured
Monitor system performance including network utilization, server load, and client response times
Document information models to facilitate system integration and maintenance activities

Performance Considerations

OPC UA performance depends on factors including network bandwidth, server processing capacity, and client subscription patterns. Large-scale deployments may require distributed server architectures and load balancing strategies to maintain acceptable response times.

Data update rates must be balanced against network capacity and processing requirements. Intelligent subscription management and data filtering help optimize performance while ensuring critical information reaches applications promptly.

Security overhead can impact performance, particularly for high-frequency data exchange. Security policy selection should balance protection requirements against performance needs for specific applications.

Integration with Industrial Systems

OPC UA serves as a fundamental integration technology for modern industrial automation systems, enabling communication between PLCs, SCADA systems, historians, and enterprise applications. The standard's platform independence supports heterogeneous system environments common in industrial facilities.

The technology integrates closely with time series analysis systems and real-time analytics platforms by providing standardized access to operational data. Integration with digital twin implementations enables real-time data synchronization between physical and virtual systems.

Standards Compliance and Certification

OPC UA implementations undergo rigorous testing and certification processes to ensure compliance with standard specifications and interoperability with other certified products. Certification programs provide confidence in product compatibility and performance characteristics.

The standard continues to evolve through working groups that address emerging requirements including time-sensitive networking (TSN), cloud connectivity, and field-level communication integration.

Related Concepts

OPC UA closely integrates with MQTT and other IoT protocols to provide comprehensive industrial communication capabilities. The standard supports Industrial Internet of Things implementations through secure, scalable device connectivity.

Data integration strategies often leverage OPC UA as a primary integration technology for operational data access. Unified namespace architectures frequently use OPC UA for standardized data publication and subscription services.

OPC UA represents a foundational technology for modern industrial communication that enables secure, interoperable, and scalable integration of diverse industrial systems. The standard's comprehensive approach to communication, security, and information modeling makes it essential for organizations implementing Industry 4.0 and digital transformation initiatives.
