Model Based Design (MBD)

Core Fundamentals

Model Based Design represents a paradigm shift from traditional document-based design processes to model-centric approaches where executable models serve as the primary design artifacts. The methodology emphasizes early validation, continuous verification, and automated implementation through integrated tool chains that support the complete development lifecycle.

The fundamental principle of MBD involves creating mathematical models that capture system requirements, design intent, and implementation details in executable form. These models enable early detection of design issues, systematic verification of system behavior, and automated generation of implementation artifacts including production code and test procedures.

MBD addresses critical challenges in complex system development including requirements traceability, design verification, and implementation consistency. The approach enables rapid design iteration, systematic testing, and confident deployment through model-based validation and verification workflows.

MBD Development Process

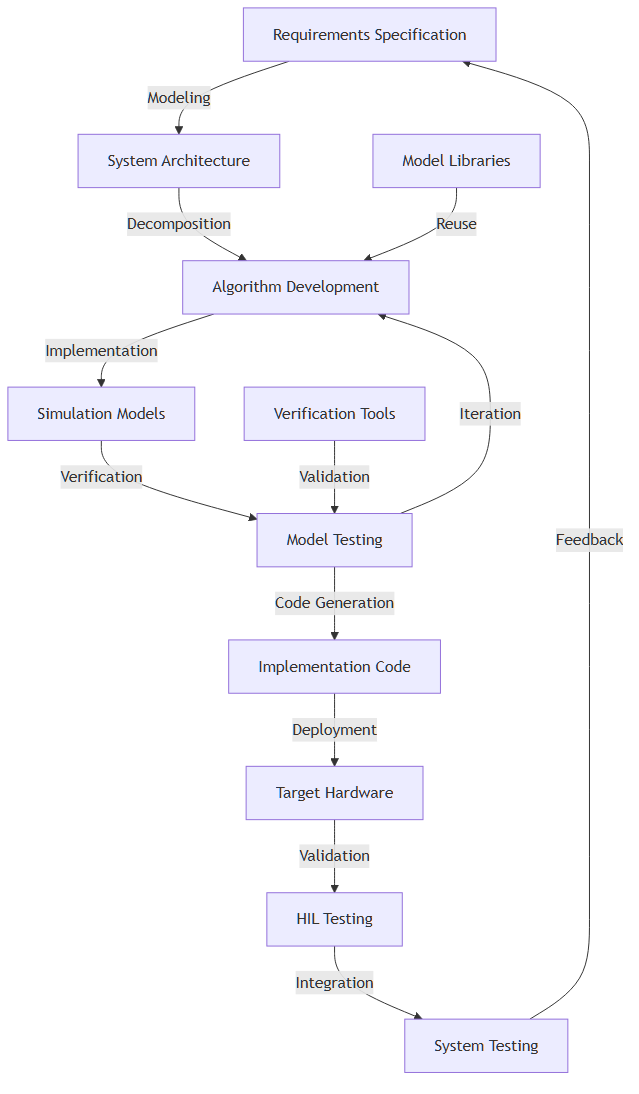

The Model Based Design workflow comprises several interconnected phases:

1. Requirements Modeling: Formal specification of system requirements using executable models and test scenarios
2. System Architecture Design: High-level system decomposition and interface definition using architectural modeling tools
3. Algorithm Development: Detailed implementation of control algorithms, signal processing functions, and system logic
4. Simulation and Analysis: Comprehensive testing of system models across operational scenarios and edge cases
5. Implementation: Automated code generation and hardware deployment with traceability to source models
6. Verification and Validation: Systematic testing including Software-in-the-Loop, Hardware-in-the-Loop, and system-level testing

Applications and Use Cases

Automotive Control Systems

MBD enables development of complex automotive control systems including engine management, transmission control, and advanced driver assistance systems. The methodology supports safety-critical development requirements through systematic verification and automated code generation that ensures implementation consistency with validated models.

Aerospace System Development

Aircraft control systems, navigation systems, and flight management systems leverage MBD for rigorous development processes that meet aerospace safety and certification requirements. Model-based approaches enable comprehensive verification including failure mode analysis and safety case development.

Industrial Automation

Manufacturing control systems, process automation, and robotics applications use MBD to develop reliable, high-performance control algorithms. The methodology enables rapid prototyping and systematic optimization of control strategies before deployment in production environments.

Technology Platforms and Tools

MATLAB/Simulink: The leading platform for Model Based Design provides comprehensive capabilities for modeling, simulation, code generation, and verification. Simulink enables graphical modeling of dynamic systems while MATLAB provides algorithmic development and analysis capabilities.

Specialized Tools: Domain-specific tools including TargetLink, SCADE, and LabVIEW provide MBD capabilities tailored to specific industries and applications. These tools often include certification support and industry-specific libraries.

Open Source Solutions: Emerging open source platforms including Scilab/Xcos and OpenModelica provide cost-effective alternatives with growing capabilities for model-based development workflows.

Code Generation and Implementation

Automatic Code Generation: MBD platforms provide sophisticated code generation capabilities that translate validated models into production-ready C/C++ code. Generated code includes optimization for target hardware platforms and maintains traceability to source models.

Target Platform Support: Modern MBD tools support diverse target platforms including microcontrollers, DSPs, FPGAs, and multicore processors. Platform-specific optimizations ensure efficient code execution while maintaining model fidelity.

Certification Support: Safety-critical applications require code generation tools that support certification standards including DO-178C for aerospace and ISO 26262 for automotive applications. Qualified code generators provide the evidence necessary for certification compliance.

Verification and Validation Strategies

Model-in-the-Loop (MIL): Early verification using pure simulation where all system components are modeled mathematically. MIL testing enables rapid iteration and comprehensive coverage of system behavior under diverse conditions.

Software-in-the-Loop (SIL): Testing generated code against simulation models to verify code generation accuracy and performance. SIL testing validates the transition from models to implementation while maintaining simulation speed.

Hardware-in-the-Loop (HIL): Integration testing using actual control hardware connected to real-time plant models. HIL testing validates complete system behavior including hardware-specific effects and timing characteristics.

Benefits and Advantages

Accelerated Development: MBD enables rapid prototyping and iterative design through simulation-based validation that reduces the need for physical prototyping. Early problem detection and resolution significantly reduce development time and costs.

Improved Quality: Systematic verification and automated code generation reduce human errors and ensure consistency between design intent and implementation. Model-based testing enables comprehensive coverage that improves system reliability.

Enhanced Collaboration: Executable models provide common language between different engineering disciplines and enable effective communication of design intent across development teams.

Implementation Considerations

Tool Integration: Successful MBD implementation requires integration between modeling tools, version control systems, and testing platforms. Tool chain automation reduces manual effort and ensures consistent development processes.

Model Management: Large-scale MBD projects require systematic model organization, version control, and configuration management. Library development and model reuse strategies help manage complexity and accelerate development.

Skills Development: MBD adoption requires training in modeling techniques, tool usage, and verification methodologies. Organizations must invest in skill development and establish modeling standards and best practices.

Best Practices and Guidelines

1. Establish clear modeling standards that ensure consistency and quality across development teams
2. Implement systematic verification workflows that validate models at multiple abstraction levels
3. Maintain requirements traceability throughout the development process from specification to implementation
4. Leverage model libraries and reusable components to accelerate development and improve quality
5. Plan for tool chain integration that supports automated workflows and continuous verification
6. Invest in team training and establish communities of practice for knowledge sharing

Integration with Systems Engineering

MBD integrates closely with Model Based Systems Engineering through shared modeling principles and tool integration. System-level models provide context and requirements for detailed MBD implementations while MBD provides verification and validation evidence for systems engineering processes.

The methodology supports digital twin development by providing the high-fidelity models necessary for virtual system representation. MBD models can be deployed as real-time digital twins that maintain synchronization with physical systems.

Related Concepts

Model Based Design closely integrates with simulation technologies and Hardware-in-the-Loop Testing methodologies. The approach leverages MATLAB and LabVIEW platforms for implementation and verification.

Functional Mock-up Unit standards enable model exchange and co-simulation between different MBD tools. Configuration management practices ensure systematic control of model versions and development artifacts.

Model Based Design represents a transformative approach to engineering complex systems that enables accelerated development, improved quality, and systematic verification. Success requires commitment to model-centric processes, investment in appropriate tools and training, and systematic integration with broader engineering workflows to realize the full potential of model-based development methodologies.
