Metrics Collection Agent

Understanding Metrics Collection Agents

Metrics collection agents function as lightweight, autonomous software services that operate close to data sources, minimizing latency and ensuring data integrity. Unlike traditional polling-based monitoring systems, modern collection agents are designed to handle the high-frequency, high-volume data characteristics typical of industrial environments while maintaining minimal system resource consumption.

The agent architecture enables seamless integration with industrial data historians, time-series databases, and metrics backends to provide comprehensive visibility into industrial operations.

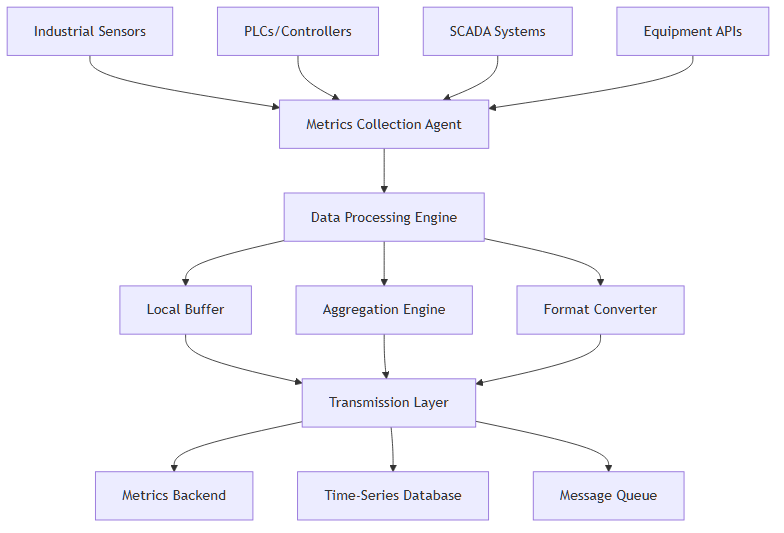

Core Architecture and Components

Key Components

1. Data Source Connectors: Protocol-specific interfaces for various industrial systems
2. Processing Engine: Real-time data filtering, aggregation, and transformation
3. Local Storage Buffer: Temporary data persistence during network outages
4. Transmission Layer: Reliable data delivery with retry mechanisms
5. Configuration Manager: Dynamic reconfiguration without service interruption

Applications in Industrial Data Processing

Manufacturing Systems

Metrics collection agents enable monitoring of:

- Equipment Performance: Machine cycle times, throughput rates, utilization metrics

- Process Parameters: Temperature, pressure, flow rates, and quality indicators

- Energy Consumption: Power usage patterns, efficiency ratios, and demand forecasting

- Maintenance Indicators: Vibration signatures, bearing temperatures, and wear patterns

Model Based Systems Engineering

In MBSE environments, collection agents support:

- Simulation Data Capture: Real-time collection of model execution metrics

- Test Automation: Automated gathering of test results and performance benchmarks

- Version Control Integration: Tracking model performance across different iterations

- Compliance Monitoring: Continuous collection of regulatory and standards metrics

Industrial IoT Integration

Industrial IoT deployments utilize collection agents for:

- Device Fleet Management: Health monitoring across distributed sensor networks

- Edge Computing: Local processing and aggregation before cloud transmission

- Protocol Translation: Converting between different industrial communication protocols

- Data Quality Assurance: Validation and cleansing of sensor data streams

Data Processing Capabilities

Real-time Processing

1. Stream Processing: Continuous data flow handling with minimal latency
2. Filtering: Removal of redundant or invalid data points
3. Aggregation: Time-window based calculations (averages, sums, counts)
4. Enrichment: Adding contextual metadata and calculated fields

Reliability Features

1. Local Buffering: Disk-based storage during network connectivity issues
2. Backpressure Handling: Automatic load shedding during high-volume periods
3. Retry Logic: Intelligent retry mechanisms for failed transmissions
4. Health Monitoring: Self-monitoring and automatic recovery capabilities

Implementation Example

```python class IndustrialMetricsAgent: def __init__(self, config): self.data_sources = self._initialize_sources(config) self.processor = DataProcessor(config) self.buffer = LocalBuffer(config.buffer_size) self.transmitter = DataTransmitter(config) def collect_metrics(self): while True: # Collect from multiple sources raw_data = self._collect_from_sources() # Process and validate processed_data = self.processor.process_batch(raw_data) # Handle transmission with buffering if self.transmitter.is_healthy(): self.transmitter.send_batch(processed_data) else: self.buffer.store_batch(processed_data) self._attempt_buffer_flush() def _collect_from_sources(self): collected_data = [] for source in self.data_sources: try: metrics = source.collect() collected_data.extend(metrics) except Exception as e: self._log_collection_error(source, e) return collected_data ```

Performance Considerations

Resource Optimization

- Memory Management: Efficient buffering strategies to prevent memory leaks

- CPU Utilization: Optimized collection intervals based on data source characteristics

- Network Bandwidth: Intelligent batching and compression to minimize network usage

- Storage Efficiency: Configurable retention policies for local buffering

Scalability Factors

- Metric Cardinality: Managing the number of unique metric-label combinations

- Collection Frequency: Balancing data freshness with system performance

- Data Volume: Handling peak loads during high-activity operational periods

- Network Resilience: Maintaining service during intermittent connectivity

Best Practices for Industrial Deployment

1. Source Configuration: Optimize collection intervals based on data source characteristics
2. Data Validation: Implement comprehensive data quality checks at collection point
3. Error Handling: Robust error handling and logging for troubleshooting
4. Security Implementation: Secure authentication and encrypted data transmission
5. Monitoring Strategy: Comprehensive monitoring of agent health and performance
6. Capacity Planning: Size buffers and processing capacity for peak operational loads

Metrics collection agents are fundamental to building reliable industrial data pipelines that enable real-time analytics, predictive maintenance, and data-driven optimization in modern manufacturing and engineering environments. Their efficiency and reliability directly impact the quality and availability of data used for critical operational decisions.
