Metric Cardinality

Understanding Metric Cardinality

Metric cardinality directly impacts the scalability and performance of industrial monitoring systems. When sensors, machines, and processes generate time-series data, each metric can have multiple dimensions or labels that describe its context. The cardinality represents the total number of unique metric-label combinations that a time-series database must track and store.

In Model Based Design (MBD) environments, cardinality becomes particularly important when dealing with simulation data, where multiple model parameters and state variables create extensive label combinations. High cardinality can lead to memory exhaustion, increased storage costs, and degraded query performance.

Core Components of Metric Cardinality

The cardinality of a metric system is determined by several factors:

1. Metric Names: The base identifiers for measurements (e.g., temperature, pressure, vibration)
2. Label Keys: The dimensional attributes that provide context (e.g., machine_id, sensor_type, location)

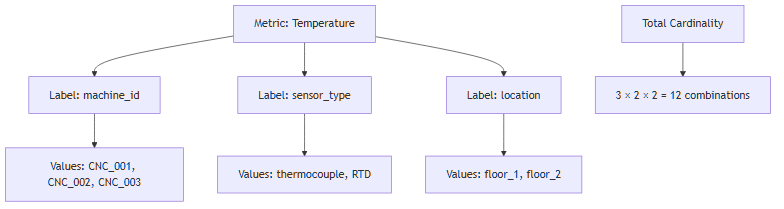

3. Label Values: The specific values for each label key (e.g., machine_id="CNC_001", sensor_type="temperature")
4. Combinations: The multiplicative effect of all possible label value combinations

Applications in Industrial Data Processing

Manufacturing Systems

In industrial manufacturing, metric cardinality grows rapidly with:

- Equipment diversity (different machine types and models)

- Sensor proliferation (multiple sensors per machine)

- Process variations (different production lines and shifts)

- Quality parameters (multiple measurement points per product)

Model Based Systems Engineering

MBSE environments generate high cardinality through:

- System hierarchy levels (subsystem, component, part)

- Simulation parameters (multiple variables per model)

- Test scenarios (different operational conditions)

- Version tracking (model iterations and configurations)

Industrial IoT Deployments

Industrial IoT systems face cardinality challenges from:

- Device scaling (hundreds to thousands of connected devices)

- Multi-dimensional labeling (device_type, location, firmware_version)

- Dynamic environments (devices joining/leaving networks)

Performance Considerations

High metric cardinality creates several performance challenges:

1. Memory Usage: Each unique metric-label combination requires memory allocation
2. Storage Overhead: Index structures grow exponentially with cardinality
3. Query Performance: Complex label filtering becomes computationally expensive
4. Network Traffic: High cardinality increases data streaming bandwidth requirements

Best Practices for Cardinality Management

1. Label Design Optimization

- Use only essential labels for business requirements

- Avoid high-variability identifiers (timestamps, UUIDs)

- Implement standardized naming conventions

1. Cardinality Monitoring

- Regularly audit metric cardinality growth

- Set alerting thresholds for cardinality limits

- Track cardinality trends over time

1. Data Retention Strategies

- Implement time-based retention policies

- Use downsampling for historical data

- Archive stale metrics systematically

1. System Design Considerations

- Plan for cardinality growth during system design

- Consider data partitioning strategies

- Implement cardinality limits in ingestion pipelines

Implementation Example

```python # Example of cardinality-aware metric design def create_industrial_metric(machine_id, sensor_type, measurement_value): # Good practice: limited, standardized labels labels = { 'machine_id': machine_id, 'sensor_type': sensor_type, 'production_line': get_production_line(machine_id) } # Avoid: high-cardinality labels # 'timestamp': current_timestamp, # Don't use as label # 'batch_id': unique_batch_id, # Don't use as label return { 'metric_name': 'machine_sensor_reading', 'labels': labels, 'value': measurement_value } ```

Understanding and managing metric cardinality is essential for building scalable industrial data processing systems that can handle the complexity of modern manufacturing and engineering environments while maintaining optimal performance and cost-effectiveness.
