Hardware-in-the-Loop Testing

Core Fundamentals

Hardware in the loop simulation represents a critical validation stage in the development of embedded control systems, particularly in automotive, aerospace, and industrial automation applications. The technique addresses a fundamental challenge in control system development: the need to thoroughly test control algorithms and hardware interfaces before deployment in safety-critical applications.

HIL testing operates on the principle of replacing the physical plant or system being controlled with a real-time mathematical model, while keeping the actual control hardware in the test loop. This approach allows engineers to subject control systems to comprehensive test scenarios, including fault conditions and edge cases that would be dangerous or impossible to recreate with physical systems.

The methodology bridges the gap between pure software simulation and full system testing, providing a cost-effective means to validate system behavior across the entire operational envelope. HIL systems must operate in hard real-time to accurately represent the timing characteristics of the target system, making the selection of appropriate simulation hardware and software critical to test validity.

Core Components and Architecture

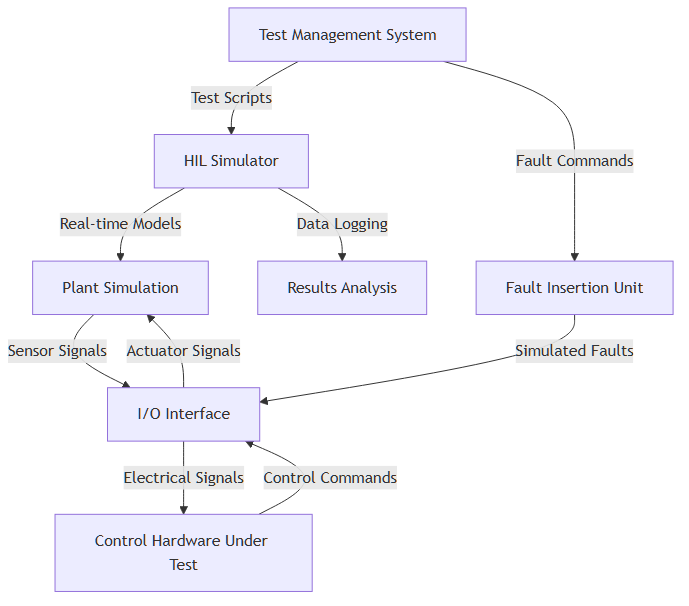

A typical HIL simulator comprises several interconnected subsystems:

1. Real-Time Simulation Computer: High-performance computing platform capable of executing complex system models within microsecond-level timing constraints
2. I/O Interface Hardware: Specialized hardware that provides electrical interfaces matching those of the actual system, including analog/digital converters and signal conditioning
3. Control Hardware Under Test: The actual embedded control unit, ECU, or controller being validated
4. System Models: Mathematical representations of the physical system, including plant dynamics, sensor characteristics, and actuator behavior
5. Test Management Software: Applications that orchestrate test execution, data collection, and result analysis
6. Fault Insertion Units: Hardware components that can simulate system faults, sensor failures, and communication errors

Applications and Use Cases

Automotive Control Systems

Hardware in the loop testing is extensively used in automotive development for validating engine control units, transmission controllers, and advanced driver assistance systems. HIL simulators can replicate vehicle dynamics, engine behavior, and environmental conditions, allowing engineers to test control algorithms across the entire operating range without requiring physical vehicles.

Aerospace and Defense

In aerospace applications, HIL testing validates flight control systems, autopilots, and navigation systems before flight testing. The technique enables testing of failure modes and emergency scenarios that would be too dangerous to test in actual flight conditions, significantly improving system safety and reliability.

Industrial Automation

Industrial control systems benefit from HIL testing by validating PLC programs, safety systems, and process control algorithms. HIL simulators can replicate complex industrial processes, allowing engineers to test control logic and safety interlocks without disrupting actual production operations.

HIL Implementation Methodologies

Model Development: Successful hardware in the loop simulation requires high-fidelity models that accurately represent system dynamics across the expected operating range. These models must be validated against experimental data and optimized for real-time execution.

Real-Time Considerations: HIL systems must maintain deterministic timing to ensure test validity. This requires careful selection of real-time operating systems, optimization of model execution, and proper system configuration to minimize timing jitter and latency.

Signal Conditioning: The electrical interface between the HIL simulator and control hardware must accurately replicate the characteristics of actual sensors and actuators. This often requires specialized signal conditioning hardware and careful calibration procedures.

Best Practices and Implementation Guidelines

1. Establish clear test objectives that define what aspects of system behavior will be validated through HIL testing
2. Develop comprehensive test scenarios that cover normal operation, boundary conditions, and fault scenarios
3. Validate simulation models against experimental data before using them in HIL testing
4. Implement systematic test documentation that captures test procedures, results, and any identified issues
5. Maintain configuration management to ensure traceability between HIL test results and specific software/hardware versions
6. Plan for scalability by designing HIL systems that can accommodate future testing requirements and system complexity growth

Performance Considerations and Limitations

HIL simulator performance is fundamentally limited by the computational requirements of real-time model execution. Complex system models may require parallel processing or model simplification to achieve required execution rates. Engineers must carefully balance model fidelity against real-time performance requirements.

Test coverage is another critical consideration. While HIL testing can evaluate many system behaviors, it cannot replicate all aspects of the physical environment. Engineers must understand the limitations of their HIL setup and complement HIL testing with other validation techniques where necessary.

The accuracy of HIL test results depends heavily on model quality and the fidelity of the electrical interfaces. Systematic validation of both models and hardware interfaces is essential to ensure that HIL test results accurately predict real-world system behavior.

Integration with Development Processes

Hardware in the loop testing integrates seamlessly with Model Based Design methodologies, using the same system models developed for initial algorithm development. This continuity ensures consistency between simulation-based development and hardware validation phases.

HIL testing often precedes system integration testing and complements software-in-the-loop testing approaches. The technique provides a natural progression from pure simulation to full system testing, enabling early detection of integration issues and reducing overall development time and cost.

Relationship to Other Concepts

HIL testing closely relates to digital twins through shared emphasis on high-fidelity system modeling and real-time simulation capabilities. Verification and validation processes rely heavily on HIL testing as a key validation technique for embedded systems.

The methodology supports rapid prototyping by enabling quick evaluation of control algorithm modifications without requiring physical system changes. Test automation frameworks often incorporate HIL systems to enable continuous validation throughout the development process.

Hardware-in-the-loop testing serves as an indispensable validation technique in modern embedded system development, providing a cost-effective means to thoroughly test control systems before deployment. The technique's ability to safely test dangerous scenarios while maintaining high test fidelity makes it essential for safety-critical applications across automotive, aerospace, and industrial domains. Successful HIL implementation requires careful attention to model development, real-time performance, and systematic test methodology to realize the full benefits of this powerful validation approach.
