Event-driven Microservices
Understanding Event-driven Microservices in Industrial Context

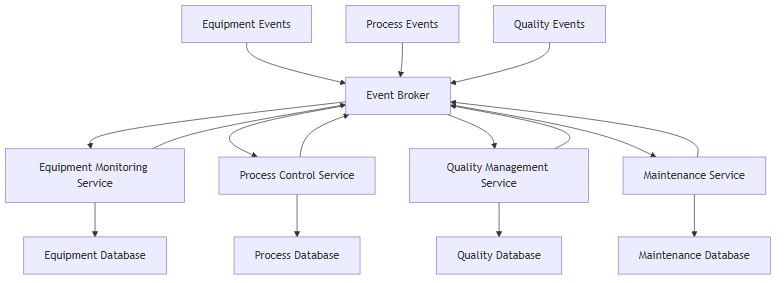

Event-driven microservices represent the convergence of two powerful architectural patterns: the modularity and independence of microservices with the responsiveness and scalability of event-driven architecture. In industrial settings, this combination enables organizations to build complex manufacturing systems from smaller, focused services that communicate through events rather than direct API calls.
This architectural approach transforms traditional monolithic industrial applications into networks of specialized services:
- Equipment monitoring services focused on specific asset types or monitoring functions
- Process control services handling specialized manufacturing processes or operations
- Quality management services dedicated to inspection, testing, and compliance functions
- Maintenance services managing predictive analytics and maintenance scheduling
- Integration services connecting with external systems and legacy infrastructure
Each service operates independently while participating in larger operational workflows through event communication, enabling greater flexibility, scalability, and maintainability than traditional integrated systems.
Core Architecture Principles
Service Independence and Autonomy
Each microservice maintains complete autonomy over its data and business logic:
Data Ownership: Each service owns and manages its specific industrial data domain
- Equipment services manage asset information, performance metrics, and health indicators
- Production services handle scheduling, recipes, and execution tracking
- Quality services control inspection data, test results, and compliance records
- Inventory services manage material tracking, consumption, and availability
Technology Independence: Services can use different technologies optimized for their specific requirements
- Time-series databases for sensor data storage and analysis
- Relational databases for transactional production data
- Document stores for unstructured quality documentation
- Graph databases for complex equipment relationship modeling
Event-First Communication Design
Services communicate primarily through events rather than synchronous API calls:
Event Publishing: Services publish events when significant changes occur in their domain
- Equipment status changes published by equipment monitoring services
- Production milestone completion events from manufacturing execution services
- Quality result availability notifications from inspection services
- Maintenance requirement identification events from predictive analytics services
Event Subscription: Services subscribe to events relevant to their operational responsibilities
- Maintenance services subscribing to equipment health degradation events
- Quality services subscribing to production completion events for inspection scheduling
- Production services subscribing to material availability events for scheduling
- Control services subscribing to safety events for immediate response
Industrial Implementation Patterns
Domain-Driven Service Design
Industrial microservices align with manufacturing domain boundaries:
Equipment Domain Services:
Example: Equipment health monitoring microservice
```python
class EquipmentHealthService:
def handle_vibration_event(self, event):
equipment_id = event.equipment_id
vibration_data = event.vibration_measurements
health_score = self.calculate_health_score(vibration_data)
if health_score < MAINTENANCE_THRESHOLD:
self.publish_event(MaintenanceRequiredEvent(
equipment_id=equipment_id,
urgency=self.calculate_urgency(health_score),
predicted_failure_date=self.predict_failure_date(health_score)
))
```
Production Domain Services:
- Scheduling service managing production orders and resource allocation
- Execution service tracking production progress and completion
- Material service handling inventory consumption and availability
- Recipe service managing product formulations and process parameters
Quality Domain Services:
- Inspection service scheduling and executing quality checks
- Testing service managing laboratory and in-line testing
- Compliance service ensuring regulatory requirement adherence
- Documentation service maintaining quality records and certifications
Event Choreography vs Orchestration
Event Choreography: Distributed coordination through event publication and subscription
- Autonomous service responses to relevant events without central coordination
- Natural workflow emergence from individual service behaviors
- Resilient operation continuing even when some services are unavailable
- Scalable coordination handling complex workflows without bottlenecks
Event Orchestration: Centralized coordination for critical manufacturing processes
- Process orchestrator services managing critical production sequences
- Explicit workflow definition for regulatory compliance and traceability
- Centralized monitoring of critical process execution
- Exception handling for process deviations and failures
Data Consistency Patterns
Eventual Consistency: Accepting temporary inconsistencies for operational flexibility
- Asynchronous synchronization between related services
- Conflict resolution strategies for handling competing updates
- Compensating actions for correcting inconsistent states
- Monitoring and alerting for detecting and resolving consistency issues
Strong Consistency: Maintaining immediate consistency for critical data
- Distributed transactions for safety-critical operations
- Saga patterns for coordinating multi-service transactions
- Event sourcing for maintaining complete audit trails
- CQRS implementation separating command and query responsibilities
Benefits for Industrial Operations
Enhanced Scalability and Performance
Event-driven microservices enable flexible scaling of industrial systems:
- Independent service scaling based on specific operational demands
- Geographic distribution supporting multi-site manufacturing operations
- Resource optimization allocating computing power where needed most
- Elastic scaling adapting to varying production schedules and requirements
Improved System Resilience
Distributed architecture provides enhanced fault tolerance:
- Service isolation preventing failures from cascading across systems
- Redundant deployment maintaining critical services across multiple instances
- Graceful degradation continuing operations with reduced functionality during outages
- Rapid recovery through independent service restart and state reconstruction
Technology Flexibility and Evolution
Microservices architecture supports technological advancement:
- Technology diversity using optimal tools for specific industrial requirements
- Independent upgrades updating individual services without system-wide downtime
- Legacy integration connecting modern services with existing industrial systems
- Innovation adoption incorporating new technologies incrementally
Implementation Challenges and Solutions
Event Schema Management
Managing event structure evolution across service ecosystems:
Schema Registry Implementation:
- Centralized schema storage ensuring consistent event definitions
- Version compatibility checking preventing breaking changes
- Backward compatibility enforcement supporting gradual service updates
- Schema documentation maintaining clear event contract specifications
Service Discovery and Communication
Enabling services to find and communicate with each other:
- Service registries maintaining current service location information
- Load balancing distributing requests across service instances
- Circuit breakers protecting against cascading failures
- Retry mechanisms handling temporary communication failures
Distributed Monitoring and Debugging
Understanding system behavior across multiple services:
Distributed Tracing: Following operational workflows across service boundaries
- Trace correlation IDs linking related events across services
- Performance monitoring identifying bottlenecks in distributed workflows
- Error tracking pinpointing failure sources in complex interactions
- Business process visibility understanding end-to-end operational flows
Centralized Logging: Aggregating logs from distributed services
- Structured logging enabling effective search and analysis
- Log correlation connecting related events across services
- Real-time alerting detecting operational issues quickly
- Compliance reporting maintaining audit trails for regulatory requirements
Industrial Use Cases and Applications
Manufacturing Execution Systems (MES)
Distributed MES implementation using event-driven microservices:
- Production scheduling service managing work orders and resource allocation
- Material tracking service monitoring inventory consumption and availability
- Quality control service coordinating inspections and test execution
- Performance monitoring service calculating real-time operational metrics
Predictive Maintenance Platforms
Maintenance systems built on microservices architecture:
- Data collection service gathering sensor data from equipment
- Analytics service performing predictive modeling and failure analysis
- Scheduling service managing maintenance activities and resource allocation
- Notification service alerting maintenance teams and operations staff
Environmental and Safety Monitoring
Distributed monitoring systems for compliance and safety:
- Sensor management service handling environmental monitoring devices
- Compliance service ensuring regulatory requirement adherence
- Alert service managing safety notifications and emergency responses
- Reporting service generating compliance documentation and audit reports
Best Practices for Industrial Implementation
Service Design and Boundaries
- Align services with business domains rather than technical functions
- Ensure service autonomy with minimal dependencies on other services
- Design for failure assuming other services may be unavailable
- Implement proper event handling including idempotency and error recovery
- Maintain clear service contracts documenting event interfaces and expectations
Operational Excellence
DevOps Integration: Supporting continuous deployment and operations
- Automated testing ensuring service reliability and integration compatibility
- Continuous integration maintaining system integration as services evolve
- Infrastructure as code enabling consistent deployment across environments
- Monitoring and alerting maintaining visibility into distributed system health
Security and Compliance: Protecting distributed industrial systems
- Service authentication ensuring only authorized services can communicate
- Event encryption protecting sensitive operational information
- Audit logging maintaining compliance with industrial regulations
- Network segmentation isolating critical services from general network traffic
Related Concepts
Event-driven microservices integrate closely with distributed systems design, container orchestration, and cloud-native architecture patterns. Understanding these relationships is essential for implementing modern industrial software architecture that can support the complexity, scalability, and reliability requirements of contemporary manufacturing environments while enabling rapid adaptation to changing business and technological requirements.
