Downsampling (Data Processing)
Understanding Downsampling in Industrial Systems
Downsampling addresses the fundamental challenge of scale in industrial data management, where sensors can generate thousands of measurements per second across hundreds or thousands of monitoring points. Rather than storing every individual measurement indefinitely, downsampling creates meaningful summaries that preserve essential information while dramatically reducing data volume.

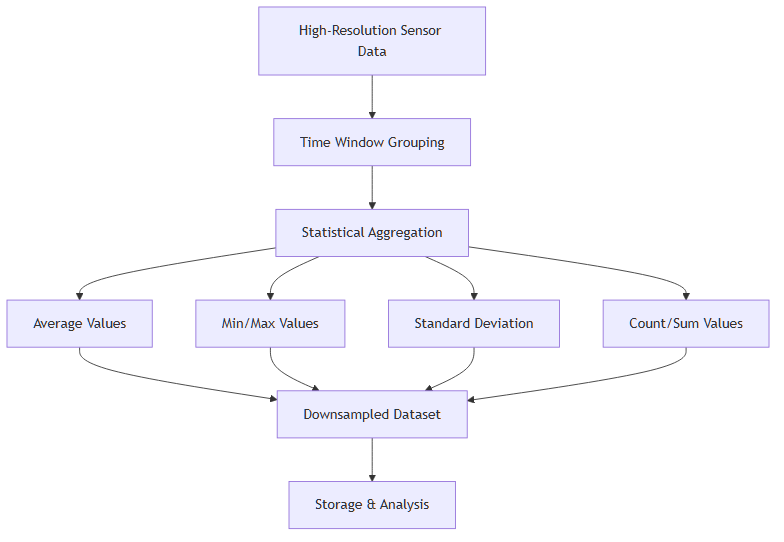

The technique works by applying statistical aggregation functions to groups of consecutive data points:
- Temporal aggregation combining measurements within defined time windows
- Statistical summarization using functions like average, minimum, maximum, and standard deviation
- Trend preservation maintaining essential patterns while reducing data density
- Selective retention keeping high-resolution data for recent periods while downsampling historical data
This approach enables industrial systems to maintain years of operational history without overwhelming storage systems or degrading query performance.
Core Downsampling Techniques
Statistical Aggregation Methods
Average (Mean) Aggregation: Calculates the arithmetic mean of all values within a time window
```sql
-- Example: Hourly temperature averages from minute-level sensor data
SELECT
AVG(temperature) AS avg_temperature,
DATE_TRUNC('hour', timestamp) AS hour_window
FROM sensor_readings
GROUP BY hour_window;
```
Min/Max Aggregation: Captures the range of values within each time period
- Minimum values for detecting equipment performance limits
- Maximum values for identifying peak operational conditions
- Range calculations for understanding process variability
Count and Sum Aggregation: Useful for discrete events and cumulative measurements
- Event counting for production line items or alarm occurrences
- Energy consumption summing power usage over time periods
- Production volume totaling output quantities
Multi-Level Downsampling Hierarchies
Industrial systems often implement hierarchical downsampling strategies:
- Raw data retention (1-second intervals) for 7 days
- Minute-level summaries for 90 days of operational analysis
- Hourly aggregations for 2 years of trend analysis
- Daily summaries for long-term historical analysis
This tiered approach balances immediate operational needs with long-term analytical requirements while optimizing storage utilization.
Industrial Applications and Use Cases
Process Monitoring and Control
Manufacturing process optimization through downsampled trend analysis:
- Temperature profiles analyzing thermal process stability over production runs
- Pressure monitoring tracking hydraulic and pneumatic system performance
- Flow rate analysis optimizing material and energy consumption patterns
- Quality metrics monitoring product specifications across production batches
Equipment Performance Analysis
Long-term equipment health monitoring using downsampled operational data:
- Vibration trending analyzing motor and bearing condition over months
- Energy consumption patterns identifying efficiency opportunities
- Cycle time analysis optimizing equipment utilization rates
- Maintenance interval optimization using historical performance data
Production Analytics
Manufacturing efficiency analysis through downsampled production metrics:
- Throughput analysis tracking production rates across shifts and seasons
- Downtime categorization analyzing equipment availability patterns
- Yield trending monitoring product quality over extended periods
- Resource utilization optimizing labor and material efficiency
Implementation Strategies for Industrial Systems
Time-Based Downsampling
The most common approach for industrial time-series data:
```sql
-- Downsampling minute-level sensor data to hourly summaries
SELECT
MIN(pressure) AS min_pressure,
MAX(pressure) AS max_pressure,
AVG(pressure) AS avg_pressure,
STDDEV(pressure) AS pressure_variation,
DATE_TRUNC('hour', timestamp) AS hour_period
FROM pressure_sensors
WHERE equipment_id = 'PUMP_001'
GROUP BY hour_period
ORDER BY hour_period;
```
Event-Based Downsampling
Aggregating based on operational events rather than fixed time intervals:
- Production cycle summaries aggregating data for complete manufacturing cycles
- Shift-based reporting summarizing data for work shift periods
- Batch operation analysis downsampling based on recipe or batch completion
- Maintenance window summaries aggregating data during equipment service periods
Adaptive Downsampling
Dynamic downsampling based on operational conditions:
- High-frequency retention during abnormal operating conditions
- Reduced sampling during steady-state operations
- Event-triggered detail maintaining full resolution during alarms
- Seasonal adjustment adapting sampling rates based on production schedules
Performance and Storage Benefits
Storage Optimization
Downsampling dramatically reduces storage requirements:
- Data volume reduction of 90-99% depending on aggregation intervals
- Index efficiency improved performance for historical queries
- Backup optimization reduced backup time and storage costs
- Archive management efficient long-term data retention strategies
Query Performance Enhancement
Aggregated data enables faster analytical queries:
- Reduced data scanning for trend analysis over extended periods
- Pre-calculated statistics eliminating real-time aggregation overhead
- Optimized indexing for time-based queries on downsampled data
- Concurrent access supporting multiple users analyzing historical data
Network and Processing Efficiency
Benefits for distributed industrial systems:
- Reduced network traffic for remote facility data synchronization
- Lower computational overhead for dashboard and reporting applications
- Improved visualization performance for long-term trend charts
- Resource allocation freeing system resources for real-time processing
Best Practices for Industrial Implementation
Data Retention Strategy Design
- Define retention policies based on operational and regulatory requirements
- Implement automated archiving for seamless data lifecycle management
- Maintain metadata documenting downsampling methods and parameters
- Plan for data recovery ensuring ability to reconstruct detailed views when needed
Quality Preservation
Ensuring downsampled data maintains analytical value:
- Representative sampling choosing appropriate aggregation functions
- Outlier handling deciding whether to include or filter extreme values
- Missing data management handling gaps in source data appropriately
- Validation procedures verifying downsampled results against expectations
Integration with Industrial Systems
Coordinating downsampling with operational requirements:
- Alarm integration ensuring critical events are preserved in downsampled data
- Regulatory compliance maintaining required data resolution for compliance reporting
- Process control coordination preserving data needed for control system analysis
- Maintenance scheduling aligning downsampling with equipment maintenance cycles
Challenges and Considerations
Information Loss Management
Balancing data reduction with information preservation:
- Critical detail retention identifying patterns that must be preserved
- Anomaly detection ensuring unusual events remain visible after downsampling
- Statistical significance maintaining meaningful statistical relationships
- Reversibility assessment understanding what information cannot be recovered
Performance Trade-offs
Managing computational overhead of downsampling operations:
- Processing schedule optimization performing downsampling during low-activity periods
- Incremental processing updating summaries as new data arrives
- Resource allocation balancing downsampling load with operational priorities
- Parallel processing using multiple threads or systems for large-scale downsampling
Related Concepts
Downsampling is closely related to other industrial data management techniques including data compression, data archival strategies, and time-series database optimization. Understanding these relationships is essential for implementing comprehensive industrial data management solutions that balance storage efficiency with analytical capability while supporting both real-time operational needs and long-term strategic analysis requirements.
