Downsampling

Understanding Downsampling Fundamentals

Downsampling addresses the challenge of managing massive volumes of high-frequency industrial data by systematically reducing temporal resolution while preserving essential information. Unlike simple data deletion, downsampling applies intelligent reduction strategies that maintain statistical properties and important patterns in the data.

Industrial systems generate data at frequencies ranging from milliseconds to seconds, creating terabytes of information daily. Downsampling enables organizations to retain long-term historical data by progressively reducing resolution as data ages, balancing storage costs with analytical requirements.

Types of Downsampling Strategies

Decimation

Selects every nth sample from the original data stream, maintaining original data points but reducing overall volume:

```python def decimate_data(data, factor): """ Decimate industrial sensor data by selecting every nth sample """ return data[::factor] ```

Aggregation-based Downsampling

Applies statistical functions to groups of data points to create summary values:

```python def aggregate_downsample(data, window_size, method='mean'): """ Downsample using aggregation methods """ methods = { 'mean': lambda x: x.mean(), 'max': lambda x: x.max(), 'min': lambda x: x.min(), 'median': lambda x: x.median(), 'std': lambda x: x.std() } return data.groupby(data.index // window_size).apply(methods[method]) ```

Adaptive Downsampling

Adjusts sampling rates based on data characteristics, maintaining higher resolution during periods of high variability:

```python def adaptive_downsample(data, variance_threshold=0.1): """ Adaptive downsampling based on local variance """ result = [] window_size = 10 for i in range(0, len(data), window_size): window = data[i:i+window_size] variance = window.var() if variance > variance_threshold: # High variance - keep more samples result.extend(window[::2]) else: # Low variance - aggressive downsampling result.append(window.mean()) return result ```

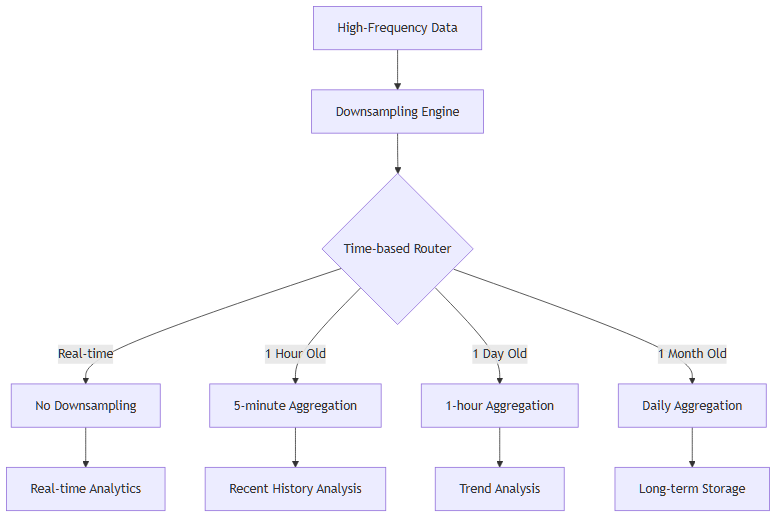

Downsampling Architecture in Industrial Systems

Applications in Industrial Data Processing

Sensor Data Management

Manufacturing facilities downsample high-frequency sensor readings to manage storage costs while maintaining essential operational insights. Critical equipment might generate readings every 100 milliseconds, but hourly averages suffice for long-term trend analysis.

Process Control Optimization

Process engineers use downsampled data to analyze equipment performance over extended periods, identifying long-term trends and optimization opportunities without processing massive raw datasets.

Energy Management

Energy monitoring systems downsample consumption data to create meaningful reports and identify usage patterns while maintaining detailed data for anomaly detection and billing accuracy.

Quality Control Analytics

Manufacturing quality systems downsample inspection data to identify long-term quality trends and process drift while preserving detailed data for root cause analysis.

Implementation Strategies

Hierarchical Downsampling

Implements multiple levels of downsampling to support different analytical requirements:

```python class HierarchicalDownsampler: def __init__(self, data_source): self.data_source = data_source self.levels = { 'raw': 1, # Original frequency 'minute': 60, # 1-minute averages 'hour': 3600, # 1-hour averages 'day': 86400 # Daily averages } def downsample_all_levels(self, data): """Create downsampled versions at all levels""" results = {} for level, factor in self.levels.items(): if level == 'raw': results[level] = data else: results[level] = self.aggregate_downsample(data, factor) return results ```

Streaming Downsampling

Processes data in real-time to create downsampled versions without storing all raw data:

```python class StreamingDownsampler: def __init__(self, window_size, aggregation_func): self.window_size = window_size self.aggregation_func = aggregation_func self.current_window = [] self.sample_count = 0 def process_sample(self, value): """Process incoming sample and emit downsampled value when ready""" self.current_window.append(value) self.sample_count += 1 if self.sample_count >= self.window_size: result = self.aggregation_func(self.current_window) self.current_window = [] self.sample_count = 0 return result return None ```

Best Practices for Industrial Downsampling

1. Preserve Statistical Properties

- Choose aggregation methods that maintain essential data characteristics

- Consider multiple statistics (mean, max, min, standard deviation) for comprehensive representation

- Validate that downsampled data preserves important patterns

2. Implement Configurable Policies

- Allow different downsampling strategies for different data types

- Enable dynamic adjustment based on storage constraints and analytical requirements

- Support exemptions for critical equipment or processes

3. Maintain Data Lineage

- Track downsampling operations in metadata

- Preserve information about aggregation methods and time windows

- Enable reconstruction of processing history

4. Optimize for Query Performance

- Align downsampling intervals with common query patterns

- Pre-compute common aggregations during downsampling

- Index downsampled data for efficient retrieval

Quality Considerations

Information Loss Assessment

Evaluate the impact of downsampling on data quality and analytical accuracy:

```python def assess_downsampling_quality(original, downsampled): """ Assess quality impact of downsampling """ metrics = { 'correlation': np.corrcoef(original, downsampled)[0,1], 'rmse': np.sqrt(np.mean((original - downsampled)**2)), 'mean_absolute_error': np.mean(np.abs(original - downsampled)) } return metrics ```

Aliasing Prevention

Implement anti-aliasing filters to prevent high-frequency noise from affecting downsampled data quality.

Edge Case Handling

Address boundary conditions, missing data, and irregular sampling intervals in industrial data streams.

Integration with Storage Systems

Tiered Storage Architecture

Downsampling integrates with tiered storage systems to automatically move older, less frequently accessed data to cheaper storage tiers.

Time Series Database Integration

Modern time series databases provide built-in downsampling capabilities optimized for industrial data patterns.

Compression Synergy

Downsampling often improves compression ratios, multiplying storage savings when combined with data compression techniques.

Advanced Downsampling Techniques

Perceptually Important Point (PIP) Selection

Identifies and preserves data points that are most important for visual analysis and pattern recognition.

Wavelet-based Downsampling

Uses wavelet transforms to identify and preserve important frequency components in industrial signals.

Machine Learning-guided Downsampling

Applies machine learning to optimize downsampling strategies based on downstream analytical requirements.

Performance Optimization

Parallel Processing

Implement parallel downsampling for large datasets to reduce processing time:

```python from multiprocessing import Pool def parallel_downsample(data_chunks, downsample_func): """ Parallel downsampling for large datasets """ with Pool() as pool: results = pool.map(downsample_func, data_chunks) return np.concatenate(results) ```

Memory-efficient Processing

Use streaming algorithms and incremental processing to handle large datasets without excessive memory usage.

Batch Optimization

Process multiple data streams simultaneously to improve resource utilization.

Challenges and Solutions

Varying Data Characteristics

Different equipment and processes may require different downsampling strategies, requiring flexible, configurable systems.

Real-time Requirements

Balancing downsampling accuracy with real-time processing requirements demands efficient algorithms and optimized implementations.

Regulatory Compliance

Some industrial applications require retention of raw data for regulatory purposes, necessitating careful policy design.

Related Concepts

Downsampling works closely with data compression, storage optimization, and time series database design. It integrates with data archival strategies and supports temporal data management in industrial environments.

Modern downsampling approaches increasingly leverage streaming processing frameworks and machine learning techniques to optimize reduction strategies based on data characteristics and analytical requirements.
