Database Partitioning
Understanding Database Partitioning in Industrial Systems
Database partitioning addresses the fundamental challenge of managing large-scale industrial data by dividing it into smaller, logically organized segments. In manufacturing environments where databases can contain millions of sensor readings, production records, and equipment measurements, partitioning enables efficient data access while maintaining system performance.
The technique works by implementing specific rules that determine how data is distributed across partitions, allowing the database engine to:
- Target specific partitions during query execution, reducing data scanning
- Parallelize operations across multiple partitions simultaneously
- Manage maintenance tasks on individual partitions without affecting the entire dataset
- Optimize storage allocation based on data access patterns and retention requirements

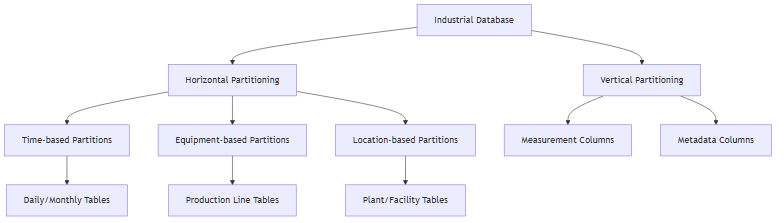

Types of Database Partitioning
Horizontal Partitioning
Horizontal partitioning divides tables by rows based on specific criteria, commonly used in industrial applications:
Time-based Partitioning: The most prevalent approach in industrial systems
- Daily partitions for high-frequency sensor data
- Monthly partitions for production and maintenance records
- Yearly partitions for historical compliance data
Equipment-based Partitioning: Organizes data by manufacturing assets
- Production line partitions for line-specific metrics
- Equipment type partitions for similar machinery
- Facility partitions for multi-site operations
Range-based Partitioning: Uses continuous value ranges
- Temperature ranges for thermal process data
- Pressure ranges for hydraulic system monitoring
- Production volume ranges for throughput analysis
Vertical Partitioning
Vertical partitioning divides tables by columns, useful when different data types have varying access patterns:
- Frequently accessed columns (current values, status indicators)
- Archived columns (historical measurements, detailed logs)
- Metadata columns (configuration data, calibration information)
Partitioning Strategies for Industrial Applications
Time-Interval Partitioning
The most common approach for industrial time-series data:
```sql
-- Example: Creating time-based partitions for sensor data
CREATE TABLE sensor_readings (
timestamp TIMESTAMP,
equipment_id VARCHAR(50),
temperature DECIMAL(10,2),
pressure DECIMAL(10,2),
vibration DECIMAL(10,2)
) PARTITION BY RANGE (timestamp) (
PARTITION p2024_01 VALUES LESS THAN ('2024-02-01'),
PARTITION p2024_02 VALUES LESS THAN ('2024-03-01'),
PARTITION p2024_03 VALUES LESS THAN ('2024-04-01')
);
```
Benefits for industrial systems:
- Query optimization for time-range analysis
- Efficient data archival of older partitions
- Maintenance scheduling during low-activity periods
- Storage optimization with different compression strategies per partition
Geographic and Operational Partitioning
For multi-site manufacturing operations:
- Regional partitions for global manufacturing networks
- Production facility partitions for plant-specific analysis
- Department partitions for organizational data segregation
- Process partitions for different manufacturing workflows
Hash-based Partitioning
Distributes data evenly across partitions using hash functions:
- Equipment ID hashing for load balancing across machinery
- Product code hashing for distributed product analytics
- Order number hashing for production scheduling systems
Performance Benefits in Industrial Environments
Query Performance Optimization
Partitioning dramatically improves query performance for typical industrial workloads:
- Partition elimination reduces data scanning for time-range queries
- Parallel processing enables concurrent analysis across partitions
- Index optimization allows partition-specific indexing strategies
- Memory efficiency through selective partition loading
Maintenance and Administration
Industrial databases require extensive maintenance operations:
- Automated partition management for time-based data
- Selective backup strategies for different data priorities
- Independent partition maintenance without system downtime
- Gradual data migration for system upgrades
Scalability Considerations
As industrial systems grow, partitioning provides scalability:
- Horizontal scaling across multiple storage devices
- Incremental capacity expansion through new partitions
- Load distribution across processing resources
- Archive management for long-term data retention
Implementation Best Practices
Partition Key Selection
Choosing the right partition key is crucial for effectiveness:
- Analyze query patterns to understand data access requirements
- Consider data distribution to ensure balanced partitions
- Plan for future growth and changing access patterns
- Evaluate maintenance requirements for different partitioning schemes
Monitoring and Optimization
Ongoing management of partitioned industrial databases:
- Partition size monitoring to detect imbalances
- Query performance analysis across different partitions
- Storage utilization tracking for capacity planning
- Automated partition pruning for data lifecycle management
Integration with Industrial Systems
Partitioning strategies must align with operational requirements:
- MES integration for production-aligned partitioning
- Historian compatibility for time-based data organization
- SCADA system alignment for real-time data partitioning
- Compliance requirements for regulatory data segregation
Challenges and Considerations
Complexity Management
Partitioned databases introduce operational complexity:
- Cross-partition queries may require additional optimization
- Partition maintenance requires automated management tools
- Application modifications may be needed for partition-aware operations
- Backup and recovery strategies become more complex
Performance Trade-offs
Not all operations benefit from partitioning:
- Small table overhead where partitioning adds unnecessary complexity
- Cross-partition joins that may reduce performance
- Uneven data distribution leading to partition imbalances
- Maintenance overhead for excessive partition numbers
Related Concepts
Database partitioning is closely related to other industrial data management concepts including data sharding, database indexing, and data archival strategies. Understanding these relationships is essential for implementing comprehensive industrial data architecture solutions that can scale with growing manufacturing data requirements.
