Data Compression

Summary

Data compression is the process of reducing the size of data files or streams by removing redundancy and encoding information more efficiently. In industrial data processing and Model Based Design (MBD) environments, data compression is essential for optimizing storage costs, reducing network bandwidth requirements, and improving data transfer speeds while maintaining acceptable levels of data quality and accessibility for analytical and operational purposes.

Understanding Data Compression Fundamentals

Data compression techniques exploit various forms of redundancy in data to achieve size reduction. Industrial environments generate vast amounts of repetitive data from sensors, control systems, and simulation models, making compression particularly effective for reducing storage and transmission costs.

Compression algorithms fall into two main categories: lossless compression, which preserves all original data exactly, and lossy compression, which achieves higher compression ratios by accepting some data quality degradation. The choice between these approaches depends on data criticality, storage constraints, and analytical requirements.

Core Components of Data Compression

  1. Compression Algorithms: Mathematical techniques for reducing data size
  2. Encoding Schemes: Methods for representing compressed data efficiently
  3. Dictionary Management: Maintaining reference patterns for compression
  4. Quality Control: Balancing compression ratio with data integrity requirements
  5. Decompression Engines: Restoring original data from compressed format

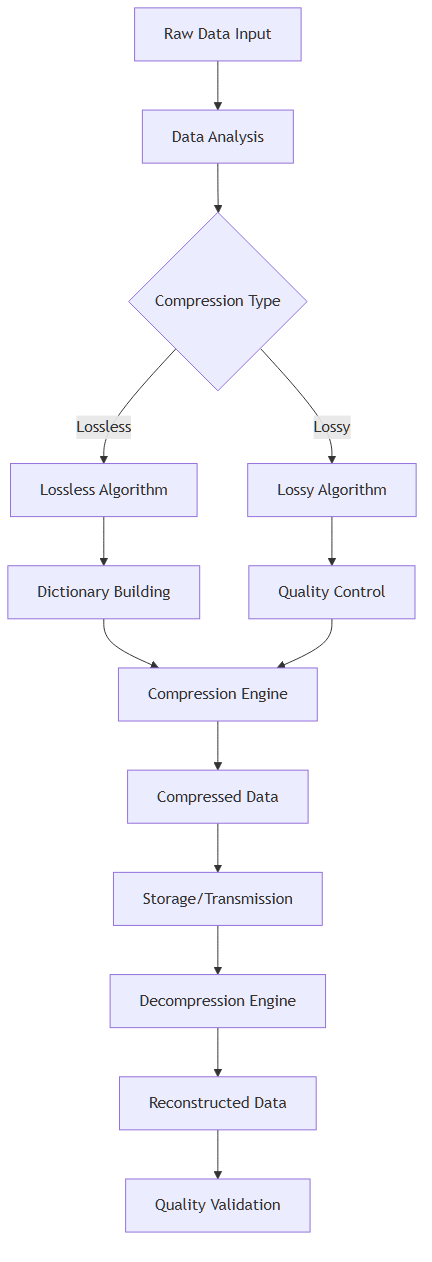

Data Compression Pipeline

Diagram

Compression Techniques for Industrial Data

Time-Series Compression

Industrial sensor data often exhibits temporal patterns that can be exploited for compression:

```python # Example time-series compression implementation import numpy as np from typing import List, Tuple, Dict from dataclasses import dataclass @dataclass class CompressionResult: compressed_data: bytes compression_ratio: float original_size: int compressed_size: int algorithm: str class TimeSeriesCompressor: def __init__(self, tolerance: float = 0.01): self.tolerance = tolerance self.compression_algorithms = { 'delta': self.delta_compression, 'rle': self.run_length_encoding, 'gorilla': self.gorilla_compression } def compress_time_series(self, timestamps: List[float], values: List[float], algorithm: str = 'delta') -> CompressionResult: """Compress time series data using specified algorithm""" original_data = np.array(list(zip(timestamps, values))) original_size = original_data.nbytes if algorithm not in self.compression_algorithms: raise ValueError(f"Unknown algorithm: {algorithm}") compressed_data = self.compression_algorithms[algorithm](timestamps, values) compressed_size = len(compressed_data) compression_ratio = original_size / compressed_size return CompressionResult( compressed_data=compressed_data, compression_ratio=compression_ratio, original_size=original_size, compressed_size=compressed_size, algorithm=algorithm ) def delta_compression(self, timestamps: List[float], values: List[float]) -> bytes: """Delta compression for time series data""" if not timestamps or not values: return b'' # Store first value as reference compressed = [timestamps[0], values[0]] # Store deltas for subsequent values for i in range(1, len(timestamps)): time_delta = timestamps[i] - timestamps[i-1] value_delta = values[i] - values[i-1] # Only store if delta exceeds tolerance if abs(value_delta) > self.tolerance: compressed.extend([time_delta, value_delta]) # Convert to bytes (simplified) return str(compressed).encode('utf-8') def run_length_encoding(self, timestamps: List[float], values: List[float]) -> bytes: """Run-length encoding for repeated values""" if not values: return b'' compressed = [] current_value = values[0] count = 1 for i in range(1, len(values)): if abs(values[i] - current_value) <= self.tolerance: count += 1 else: compressed.append((current_value, count)) current_value = values[i] count = 1 compressed.append((current_value, count)) return str(compressed).encode('utf-8') def gorilla_compression(self, timestamps: List[float], values: List[float]) -> bytes: """Simplified Gorilla-style compression for time series""" # Simplified implementation of Facebook's Gorilla compression # Real implementation would use bit-level operations compressed = [] if not values: return b'' # Store first value as reference compressed.append(values[0]) # XOR with previous value and encode differences for i in range(1, len(values)): xor_result = int(values[i]) ^ int(values[i-1]) if xor_result != 0: compressed.append(xor_result) return str(compressed).encode('utf-8') ```

Sensor Data Compression

Different types of sensor data require specialized compression approaches:

- Vibration Data: Frequency domain compression using FFT

- Temperature Data: Polynomial approximation and interpolation

- Pressure Data: Differential encoding for gradual changes

- Flow Data: Seasonal decomposition and pattern recognition

Compression Algorithms

Lossless Compression

Advantages: Perfect data preservation, suitable for critical measurements

Disadvantages: Lower compression ratios, higher computational overhead

Examples: LZ77, Huffman coding, arithmetic coding

Lossy Compression

Advantages: Higher compression ratios, faster processing

Disadvantages: Data quality degradation, potential information loss

Examples: Quantization, wavelet compression, neural network compression

Hybrid Approaches

Combining multiple compression techniques for optimal results:

- Two-stage Compression: Lossy followed by lossless

- Adaptive Compression: Algorithm selection based on data characteristics

- Multi-resolution Compression: Different compression levels for different data components

Performance Optimization

Compression Ratio Optimization

- Algorithm Selection: Choosing appropriate algorithms based on data characteristics

- Parameter Tuning: Optimizing compression parameters for specific data types

- Adaptive Compression: Dynamically adjusting compression based on data patterns

Speed Optimization

- Parallel Processing: Utilizing multiple CPU cores for compression

- Hardware Acceleration: Leveraging specialized compression hardware

- Streaming Compression: Compressing data as it arrives

Quality Management

- Error Bounds: Defining acceptable quality degradation limits

- Quality Metrics: Monitoring compression impact on data accuracy

- Validation: Verifying compressed data meets analytical requirements

Best Practices

  1. Choose Appropriate Algorithms: Select compression methods based on data characteristics and requirements
  2. Monitor Compression Quality: Track compression ratios and data quality impacts
  3. Implement Quality Controls: Validate compressed data meets analytical requirements
  4. Optimize for Access Patterns: Consider how compressed data will be accessed and analyzed
  5. Balance Compression and Performance: Optimize the trade-off between compression ratio and processing speed

Storage and Transmission Benefits

Storage Cost Reduction

- Reduced Storage Requirements: Lower storage capacity needs

- Improved Storage Efficiency: Better utilization of available storage

- Cost Optimization: Reduced storage infrastructure costs

Network Optimization

- Reduced Bandwidth Usage: Lower network transmission requirements

- Faster Data Transfer: Improved data transfer speeds

- Network Cost Savings: Reduced data transmission costs

Industry-Specific Considerations

Manufacturing

- Production Data: Compressing quality control measurements and process parameters

- Equipment Monitoring: Optimizing vibration and condition monitoring data

- Energy Management: Compressing power consumption and efficiency data

Process Industries

- Process Control: Compressing control loop data and setpoint information

- Environmental Monitoring: Optimizing emissions and environmental data

- Safety Systems: Compressing safety-critical sensor data

Related Concepts

Data compression integrates with storage optimization, data compression techniques for time series, and time-series compression algorithms. It also supports data archival strategies and cold vs hot storage decisions.

Data compression provides essential capabilities for managing the growing volumes of industrial data while optimizing storage costs and network utilization. Effective compression strategies enable organizations to maintain comprehensive data collection while managing infrastructure costs and ensuring data remains accessible for analytical and operational purposes.
