Data Archival Strategies

Understanding Data Archival Strategies Fundamentals

Data archival strategies encompass the policies, technologies, and processes used to transition data from active operational systems to long-term storage solutions. These strategies must consider data lifecycle management, regulatory compliance requirements, and future accessibility needs while minimizing storage costs and maintaining data integrity.

Industrial environments generate vast amounts of data from sensors, control systems, and simulation models that must be preserved for various purposes including regulatory compliance, historical analysis, and model validation. Effective archival strategies ensure this data remains available while optimizing storage infrastructure costs.

Core Components of Data Archival Strategies

1. Data Classification: Categorizing data based on value, access frequency, and retention requirements
2. Lifecycle Management: Defining rules for data transition through different storage tiers
3. Storage Optimization: Implementing compression, deduplication, and efficient storage formats
4. Metadata Preservation: Maintaining descriptive information for data discovery and context
5. Retrieval Mechanisms: Providing efficient access to archived data when needed

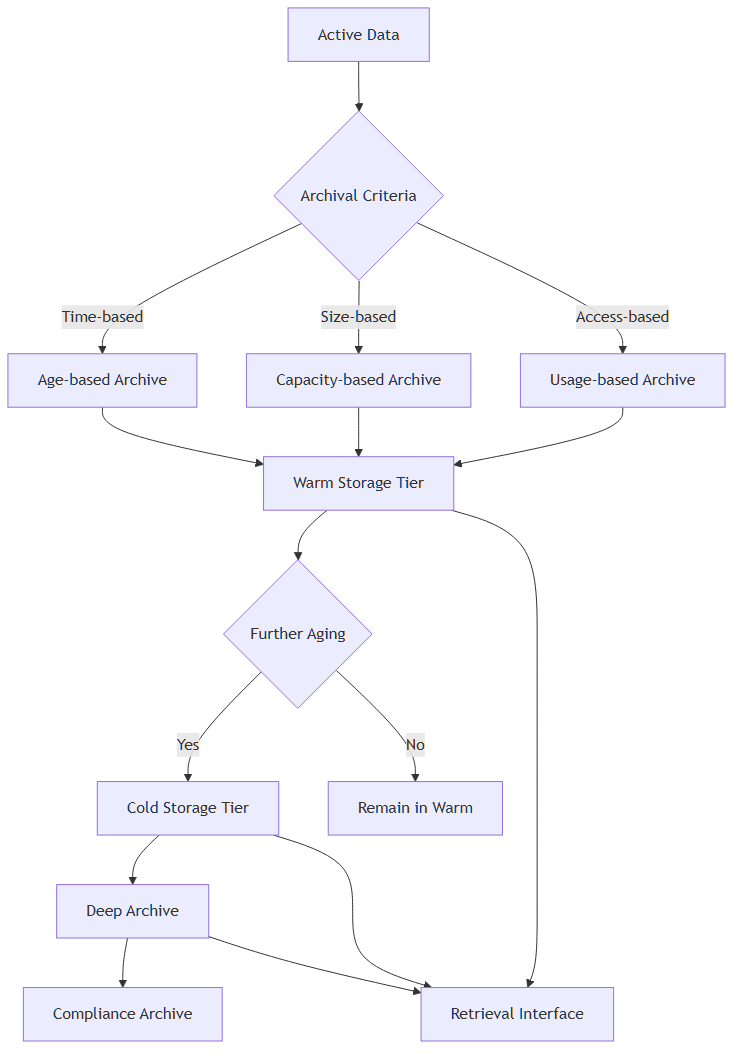

Data Archival Strategy Framework

Common Archival Strategies

Time-Based Archival

Data is automatically moved to archive storage after specific time periods (e.g., 90 days for warm storage, 1 year for cold storage). This approach is suitable for time-series data with predictable access patterns.

Capacity-Based Archival

When storage capacity reaches defined thresholds, older data is automatically archived to make room for new data. This strategy helps manage storage costs while maintaining system performance.

Access-Based Archival

Data that hasn't been accessed for specific periods is moved to archive storage. This approach optimizes storage costs by keeping frequently accessed data in faster storage tiers.

Compliance-Driven Archival

Data is archived based on regulatory requirements, ensuring long-term preservation while meeting legal and audit requirements.

Implementation Technologies

```python # Example data archival strategy implementation from datetime import datetime, timedelta from enum import Enum from dataclasses import dataclass from typing import Dict, List, Optional class StorageTier(Enum): HOT = "hot" WARM = "warm" COLD = "cold" DEEP_ARCHIVE = "deep_archive" @dataclass class ArchivalPolicy: data_type: str hot_retention_days: int warm_retention_days: int cold_retention_days: int deep_archive_retention_days: Optional[int] compression_enabled: bool = True encryption_required: bool = False class DataArchivalManager: def __init__(self): self.policies: Dict[str, ArchivalPolicy] = {} self.storage_tiers = { StorageTier.HOT: {"cost_per_gb": 0.10, "retrieval_time": "immediate"}, StorageTier.WARM: {"cost_per_gb": 0.05, "retrieval_time": "minutes"}, StorageTier.COLD: {"cost_per_gb": 0.01, "retrieval_time": "hours"}, StorageTier.DEEP_ARCHIVE: {"cost_per_gb": 0.004, "retrieval_time": "days"} } def add_policy(self, policy: ArchivalPolicy): """Add archival policy for specific data type""" self.policies[policy.data_type] = policy def determine_storage_tier(self, data_type: str, last_access: datetime) -> StorageTier: """Determine appropriate storage tier based on policy and access time""" if data_type not in self.policies: return StorageTier.HOT policy = self.policies[data_type] days_since_access = (datetime.now() - last_access).days if days_since_access <= policy.hot_retention_days: return StorageTier.HOT elif days_since_access <= policy.warm_retention_days: return StorageTier.WARM elif days_since_access <= policy.cold_retention_days: return StorageTier.COLD else: return StorageTier.DEEP_ARCHIVE def calculate_storage_cost(self, data_size_gb: float, storage_tier: StorageTier, retention_months: int) -> float: """Calculate storage cost for given tier and retention period""" cost_per_gb = self.storage_tiers[storage_tier]["cost_per_gb"] return data_size_gb * cost_per_gb * retention_months def optimize_archival_strategy(self, data_inventory: List[Dict]) -> Dict: """Optimize archival strategy based on data inventory""" recommendations = {} total_cost_savings = 0 for data_item in data_inventory: current_tier = StorageTier(data_item['current_tier']) optimal_tier = self.determine_storage_tier( data_item['data_type'], data_item['last_access'] ) if optimal_tier != current_tier: current_cost = self.calculate_storage_cost( data_item['size_gb'], current_tier, 12 ) optimal_cost = self.calculate_storage_cost( data_item['size_gb'], optimal_tier, 12 ) cost_savings = current_cost - optimal_cost total_cost_savings += cost_savings recommendations[data_item['id']] = { 'current_tier': current_tier.value, 'recommended_tier': optimal_tier.value, 'cost_savings': cost_savings } return { 'recommendations': recommendations, 'total_cost_savings': total_cost_savings } ```

Storage Tier Characteristics

Hot Storage

- Use Case: Frequently accessed data

- Performance: Immediate access, high IOPS

- Cost: Highest storage cost

- Retention: Recent data (0-90 days)

Warm Storage

- Use Case: Occasionally accessed data

- Performance: Access within minutes

- Cost: Moderate storage cost

- Retention: Semi-recent data (3 months - 1 year)

Cold Storage

- Use Case: Rarely accessed data

- Performance: Access within hours

- Cost: Low storage cost

- Retention: Historical data (1-7 years)

Deep Archive

- Use Case: Compliance and backup data

- Performance: Access within days

- Cost: Lowest storage cost

- Retention: Long-term preservation (7+ years)

Best Practices

1. Implement Automated Policies: Use automated systems to move data between tiers based on defined rules
2. Maintain Data Integrity: Implement checksums and verification processes to ensure archived data remains uncorrupted
3. Optimize Compression: Use appropriate compression algorithms to reduce storage costs while maintaining reasonable retrieval times
4. Document Retrieval Procedures: Maintain clear procedures for accessing archived data
5. Monitor Storage Costs: Track storage costs and optimize policies based on usage patterns

Compliance Considerations

Industrial archival strategies must address various regulatory requirements:

- Data Retention Periods: Meeting industry-specific retention requirements

- Audit Trail Preservation: Maintaining access logs and modification records

- Data Immutability: Ensuring archived data cannot be altered

- Encryption Requirements: Protecting sensitive data in archive storage

Performance Optimization

Compression Strategies

- Time-Series Compression: Specialized algorithms for sensor data

- General Purpose Compression: Standard algorithms for mixed data types

- Lossy Compression: Acceptable quality reduction for certain data types

Indexing and Metadata

- Searchable Metadata: Enabling efficient data discovery

- Hierarchical Indexing: Organizing data for faster retrieval

- Catalog Management: Maintaining comprehensive data inventories

Related Concepts

Data archival strategies integrate with archive management, data retention policy, and storage optimization. They also support cold vs hot storage decisions and data archiving for time-series databases.

Data archival strategies provide the foundation for cost-effective, long-term data preservation in industrial environments. Proper implementation enables organizations to maintain historical data accessibility while optimizing storage costs and ensuring compliance with regulatory requirements. These strategies are essential for managing the growing volumes of industrial data while balancing performance, cost, and compliance objectives.
