Understanding Curve Fitting Fundamentals

Curve fitting represents a foundational analytical technique in industrial data processing, enabling engineers to extract meaningful patterns from noisy sensor measurements, identify underlying system behaviors, and make informed predictions about equipment performance and process optimization. The technique involves finding mathematical functions that best represent the relationship between time and measured variables.

In industrial contexts, curve fitting serves multiple critical purposes: smoothing noisy measurements from industrial sensors, interpolating missing data points in equipment monitoring systems, extrapolating future performance trends, and identifying anomalous behavior that may indicate equipment degradation or process deviations.

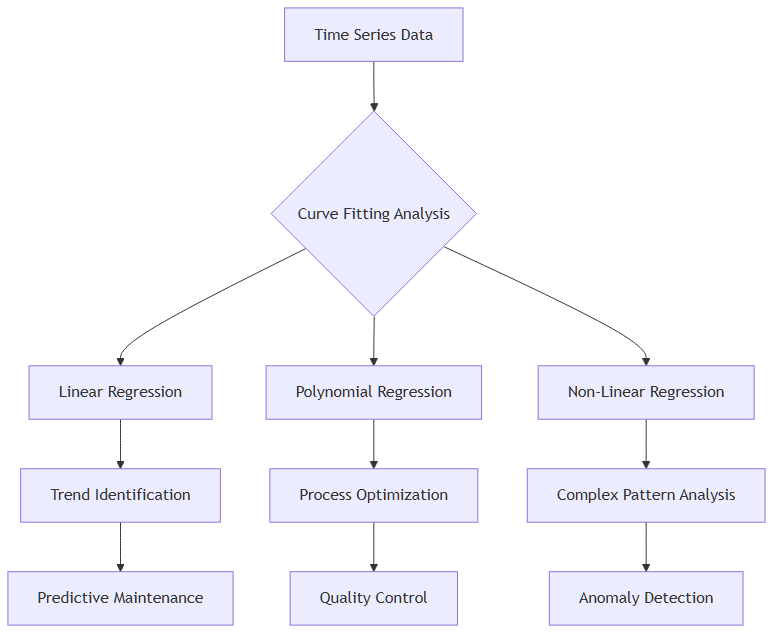

Mathematical Approaches to Curve Fitting

Linear Regression

Linear regression represents the simplest curve fitting approach, seeking to find a straight line that minimizes the distance between data points and the fitted curve:

```python

Example: Linear regression for temperature trend analysis

import numpy as np

from scipy import stats

Industrial temperature measurements over time

time_hours = np.array([0, 1, 2, 3, 4, 5, 6, 7, 8])

temperature_celsius = np.array([20.1, 21.2, 22.8, 23.1, 24.5, 25.2, 26.1, 27.3, 28.0])

Calculate linear regression

slope, intercept, r_value, p_value, std_err = stats.linregress(time_hours, temperature_celsius)

fitted_line = slope * time_hours + intercept

```

Polynomial Regression

Polynomial regression extends linear fitting to accommodate non-linear relationships common in industrial processes:

- Quadratic curves: Representing acceleration/deceleration patterns in equipment startup

- Higher-order polynomials: Modeling complex thermal profiles and process dynamics

- Exponential relationships: Analyzing equipment degradation and failure patterns

Non-Linear Regression

Advanced curve fitting employs specialized functions for complex industrial phenomena:

- Sigmoid functions: Modeling equipment response curves and process saturation

- Gaussian functions: Analyzing normal distribution patterns in quality control data

- Exponential decay: Representing equipment degradation and performance decline

Industrial Applications

Equipment Performance Analysis

Curve fitting enables comprehensive analysis of equipment performance trends:

- Degradation modeling: Identifying gradual performance decline in rotating machinery

- Efficiency analysis: Tracking energy consumption patterns and optimization opportunities

- Failure prediction: Extrapolating performance trends to predict maintenance requirements

Process Optimization

Manufacturing processes benefit from curve fitting applications:

- Temperature profiling: Optimizing heating and cooling curves in thermal processes

- Flow rate analysis: Modeling fluid dynamics and optimizing pump operations

- Quality correlation: Establishing relationships between process parameters and quality metrics

Sensor Data Analysis

Industrial sensor networks generate data requiring sophisticated curve fitting:

- Calibration drift analysis: Identifying and correcting sensor calibration degradation

- Environmental compensation: Modeling temperature and humidity effects on measurements

- Signal filtering: Smoothing noisy measurements while preserving critical trends

Implementation Techniques

Data Preprocessing

Effective curve fitting requires careful data preparation:

1. Outlier removal: Identifying and handling anomalous measurements that may skew results
2. Sampling rate normalization: Ensuring consistent time intervals for accurate analysis
3. Missing data interpolation: Filling gaps in data collection using appropriate methods
4. Noise filtering: Applying signal processing techniques to reduce measurement noise

Model Selection Criteria

Choosing appropriate fitting models requires balancing multiple factors:

- Goodness of fit: Using R-squared values and residual analysis to evaluate model accuracy

- Complexity management: Avoiding overfitting while capturing essential trends

- Physical plausibility: Ensuring fitted curves align with known physical principles

- Computational efficiency: Selecting models that can be calculated within real-time constraints

Validation and Testing

Industrial applications require robust validation approaches:

- Cross-validation: Testing model performance on independent datasets

- Residual analysis: Examining fitting errors to identify systematic biases

- Prediction accuracy: Evaluating extrapolation performance against actual measurements

- Sensitivity analysis: Assessing model stability under varying conditions

Best Practices for Industrial Implementation

Data Quality Management

1. Implement comprehensive data validation to ensure measurement accuracy and reliability
2. Establish data quality metrics to monitor sensor performance and measurement consistency
3. Document data collection procedures to maintain consistency across different measurement campaigns
4. Maintain calibration records to enable compensation for sensor drift and aging effects

Model Development and Deployment

1. Start with simple models and increase complexity only when justified by improved performance
2. Document model assumptions and limitations for proper application and interpretation
3. Implement version control for curve fitting models and associated parameters
4. Establish update procedures for model refinement based on new data and changing conditions

Integration with Industrial Systems

1. Design real-time fitting capabilities for applications requiring immediate trend analysis
2. Implement automated alert systems for significant deviations from expected curves
3. Integrate with existing data historians and analysis platforms
4. Provide visualization tools for engineers to interpret and validate fitting results

Performance Considerations

Curve fitting in industrial environments requires balancing computational efficiency with analytical accuracy:

Real-time Requirements: Critical applications may require fitting algorithms that can execute within strict timing constraints while maintaining acceptable accuracy.

Scalability: Systems must handle large datasets from multiple sensors and equipment simultaneously without degrading performance.

Robustness: Fitting algorithms must remain stable and accurate despite occasional data quality issues, sensor failures, or process disturbances.

Curve fitting in time series analysis provides industrial engineers with powerful tools for extracting insights from operational data, enabling data-driven decision making that improves equipment reliability, optimizes process performance, and supports advanced industrial IoT applications.
