Understanding Compression Ratio Fundamentals

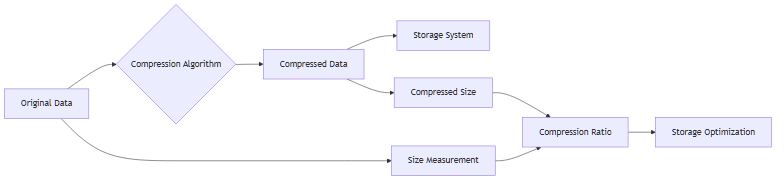

Compression ratio quantifies how much space is saved when data is compressed, expressed as a mathematical relationship between original and compressed data sizes. The metric is particularly important in industrial applications where continuous data collection from sensors, test equipment, and monitoring systems generates massive volumes of information that must be stored cost-effectively.

The compression ratio is calculated using the formula:

```

compression_ratio = original_size / compressed_size

```

A compression ratio of 4:1 means the compressed data is one-fourth the size of the original data, representing a 75% reduction in storage requirements.

Compression Ratio Calculation and Interpretation

Basic Calculation

```python

Example calculation for industrial sensor data

original_size = 10_000_000 # bytes

compressed_size = 2_500_000 # bytes

compression_ratio = original_size / compressed_size

storage_savings = (1 - compressed_size/original_size) * 100

print(f"Compression ratio: {compression_ratio:.1f}:1")

print(f"Storage savings: {storage_savings:.1f}%")

```

Performance Metrics

Industrial systems typically evaluate compression effectiveness through multiple metrics:

- Space efficiency: Percentage of storage reduction

- Compression speed: Time required to compress data

- Decompression speed: Time required to access compressed data

- Data integrity: Preservation of measurement accuracy

Industrial Data Compression Characteristics

Time-Series Data Patterns

Industrial sensor data exhibits specific characteristics that affect compression ratios:

1. Temporal Locality: Consecutive measurements often have similar values
2. Regular Sampling: Fixed intervals between measurements enable delta encoding
3. Seasonal Patterns: Cyclical behavior in process variables and environmental conditions
4. Limited Value Ranges: Sensor measurements typically operate within known bounds

Equipment-Specific Considerations

Different industrial equipment generates data with varying compression characteristics:

- Temperature sensors: Gradual changes enable high compression ratios (8:1 to 15:1)

- Vibration data: High-frequency oscillations may achieve lower ratios (2:1 to 4:1)

- Digital I/O: Binary state changes often compress exceptionally well (10:1 to 20:1)

Compression Strategies for Industrial Applications

Lossless Compression

Maintains exact data reconstruction, essential for compliance and quality control:

- Delta encoding: Stores differences between consecutive values

- Dictionary encoding: Replaces repeated values with shorter codes

- Run-length encoding: Efficiently handles sequences of identical values

Lossy Compression

Accepts minor data loss for higher compression ratios:

- Downsampling: Reduces sampling frequency for non-critical historical data

- Precision reduction: Decreases floating-point precision within acceptable tolerances

- Approximation algorithms: Uses mathematical models to represent data trends

Applications in Industrial Systems

Manufacturing Operations

- Process control data: Achieving 5:1 to 12:1 compression ratios for temperature, pressure, and flow measurements

- Quality control records: Optimizing storage of inspection results and statistical process control data

- Equipment monitoring: Compressing vibration, current, and operational status data

Research and Development

- Experimental data: Efficient storage of test results and prototype performance measurements

- Simulation results: Compressing computational fluid dynamics and finite element analysis outputs

- Design validation: Optimizing storage of verification and validation test data

Asset Management

- Maintenance records: Compressing historical maintenance data and equipment performance logs

- Condition monitoring: Optimizing storage of continuous health monitoring data

- Energy management: Efficient storage of power consumption and efficiency measurements

Best Practices for Industrial Implementation

1. Analyze data characteristics before selecting compression algorithms to predict achievable ratios
2. Monitor compression trends to identify changes in data patterns or system performance
3. Balance compression with access speed based on query patterns and real-time requirements
4. Implement column-specific strategies for different measurement types and data formats
5. Test compression changes in non-production environments before deployment
6. Consider regulatory requirements when choosing between lossless and lossy compression
7. Plan for future growth by selecting algorithms that scale with increasing data volumes

Performance Considerations

Compression ratio optimization requires balancing multiple performance factors:

Storage Efficiency: Higher compression ratios reduce storage costs but may increase CPU overhead during compression and decompression operations.

Query Performance: Compressed data must be decompressed before analysis, potentially affecting response times for time-critical applications.

Write Throughput: Compression algorithms can impact data ingestion rates, requiring careful selection for high-velocity industrial data streams.

Compression ratio serves as a fundamental metric for optimizing industrial data management systems, enabling organizations to efficiently store and analyze the vast quantities of operational data generated by modern industrial equipment while maintaining the data quality and accessibility required for effective predictive maintenance and process optimization initiatives.
