Clock Drift
Understanding Clock Drift
Clock drift occurs because no two physical clocks run at exactly the same rate. Even high-precision crystal oscillators used in industrial computers and embedded systems experience slight frequency variations due to manufacturing tolerances, temperature changes, aging, and other environmental factors. Over time, these small differences accumulate, causing clocks to diverge from each other and from reference time sources.

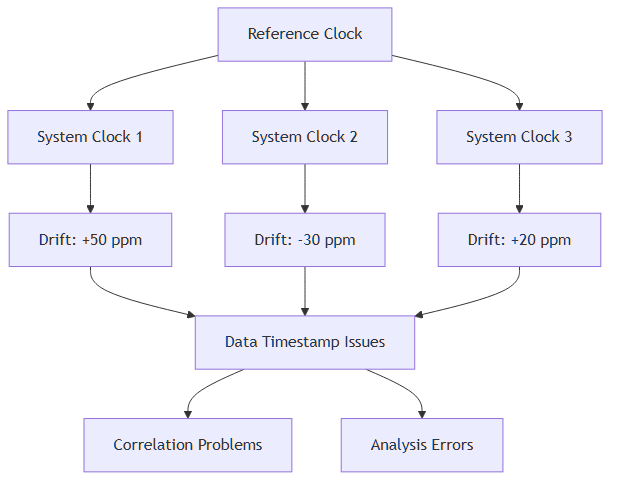

The rate of clock drift is typically measured in parts per million (ppm) or as a time deviation over a specific period. For example, a clock with a drift rate of 50 ppm will gain or lose approximately 4.3 seconds per day relative to a perfect reference clock. In industrial systems with multiple distributed components, this cumulative effect can lead to significant timing discrepancies that affect data correlation and system coordination.
Impact on Industrial Systems
Clock drift creates several critical challenges in industrial environments:
Data Integrity Issues
- Event Ordering Problems: When events from different systems have inconsistent timestamps, it becomes difficult to establish correct causal relationships
- Measurement Correlation: Sensor data from multiple sources may appear misaligned, leading to incorrect analysis and decision-making
- Historical Data Analysis: Long-term trend analysis becomes unreliable when timestamps drift significantly over time
System Coordination Challenges
- Control System Synchronization: Distributed control systems require precise timing coordination for proper operation
- Safety System Reliability: Safety-critical systems depend on accurate timing for proper fault detection and response
- Communication Protocol Disruption: Time-sensitive industrial communication protocols may fail when clock synchronization is lost
Mitigation Strategies and Solutions
Network Time Protocol (NTP) Implementation
NTP provides the most common solution for clock synchronization in industrial networks:
- Hierarchical Synchronization: Establishes time reference hierarchies with stratum levels
- Automatic Drift Correction: Continuously adjusts local clocks based on network time references
- Redundant Time Sources: Uses multiple time servers for increased reliability
- Precision Time Protocol (PTP): Offers sub-microsecond synchronization for high-precision applications
Hardware-Based Solutions
- GPS Time Synchronization: Provides highly accurate absolute time references for distributed systems
- Atomic Clock References: Offers maximum precision for critical timing applications
- Temperature-Compensated Oscillators: Reduces drift caused by temperature variations
- Holdover Capability: Maintains accurate timekeeping during network outages
Software-Based Approaches
- Timestamp Correction Algorithms: Implement software algorithms to correct for known drift patterns
- Buffering and Reordering: Use buffering techniques to reorder events based on corrected timestamps
- Drift Monitoring: Continuously monitor and compensate for clock drift in real-time
- Synchronization Protocols: Implement custom synchronization protocols for specific industrial applications
Applications and Use Cases
Industrial Control Systems
Clock drift mitigation is essential for:
- Distributed Control Systems (DCS): Ensuring coordinated control actions across multiple control loops
- Safety Instrumented Systems (SIS): Maintaining precise timing for safety-critical operations
- Motion Control Systems: Synchronizing multiple axes in manufacturing automation
Data Acquisition and Monitoring
Precise timing is crucial for:
- Multi-sensor Data Fusion: Correlating data from multiple sensors and measurement points
- Process Monitoring: Maintaining accurate timestamps for regulatory compliance and quality control
- Equipment Condition Monitoring: Tracking equipment performance trends with precise temporal resolution
Model Based Design Integration
Clock synchronization supports MBD workflows by:
- Simulation Correlation: Ensuring simulation timestamps align with real-world data collection
- Hardware-in-the-Loop Testing: Maintaining timing precision between simulation and physical systems
- Design Validation: Providing accurate timing references for system performance validation
Best Practices
Implementation Guidelines
- Establish Time Reference Hierarchy: Implement a clear hierarchical time distribution system
- Monitor Drift Continuously: Use network monitoring tools to track clock synchronization status
- Implement Redundancy: Deploy multiple time sources to prevent single points of failure
- Regular Calibration: Perform periodic calibration of critical timing systems
- Documentation: Maintain detailed records of timing system configurations and performance
Performance Considerations
- Network Latency: Account for network delays in time synchronization protocols
- Update Frequency: Balance synchronization frequency with network bandwidth usage
- Precision Requirements: Match synchronization precision to application requirements
- Failover Mechanisms: Implement automatic failover to backup time sources
Integration with Industrial Systems
Clock drift mitigation integrates with various industrial technologies:
- SCADA Systems: Ensuring coordinated data collection across distributed field devices
- Manufacturing Execution Systems: Maintaining accurate production timing and scheduling
- Condition Monitoring Systems: Providing precise timestamps for equipment health analysis
Related Concepts
Clock drift is closely related to several other timing and synchronization concepts:
- Network Time Protocol: The primary protocol for clock synchronization
- Precision Time Protocol: High-precision timing for industrial applications
- Temporal Data Management: Managing time-sensitive data in industrial systems
Clock drift represents a fundamental challenge in distributed industrial systems that requires careful attention to ensure data integrity, system coordination, and operational reliability. Proper implementation of time synchronization strategies is essential for maintaining the precision required in modern industrial applications.
